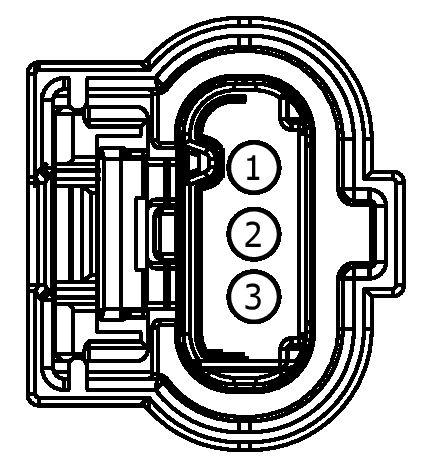

Connector End View (C1541) - IGNITION COIL-ON-PLUG 4
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1541 | IGNITION COIL-ON-PLUG 4 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) | EU5T-14474-GAB | ||||
| 2 | GD108 (BK-VT) | 16 | GROUND - CHASSIS / BATTERY | EU5T-14474-GAB | ||||
| 3 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1492
Service Part Number:
HU2Z-14S411-BA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Delta Pressure Feedback EGR
- Sensor - Exhaust Gas Pressure
- Sensor - Intake Manifold Runner Control
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Oil Pressure
