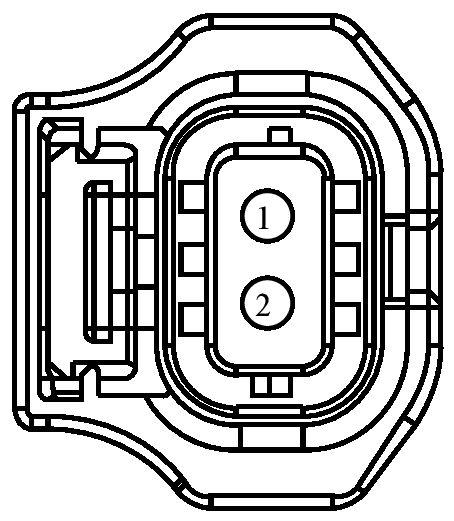

Connector End View (C1469) - OIL PRESSURE CONTROL SOLENOID
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1469 |
OIL PRESSURE CONTROL SOLENOID |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| EU5T-14474-SB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBK03 (GY) |
18 |
FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) |
EU5T-14474-SB |
| 2 |
VE821 (WH-VT) |
18 |
SENSOR - VACUUM RESERVOIR PRESSURE (VRP) |
EU5T-14474-SB |
