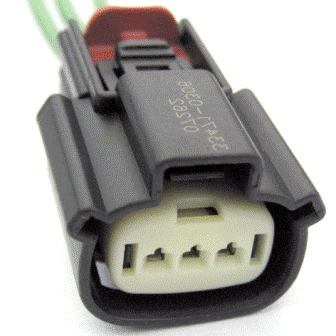

Connector End View (C1463A) - POWER STEERING CONTROL MODULE (PSCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1463A	POWER STEERING CONTROL MODULE (PSCM)	BK	14A280	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB19 (BN-WH)	16	FUSE - 19 OR CIRCUIT BREAKER	7C3T-14474-DA
2	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	BU5T-14474-UA
3	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	BU5T-14474-UA
3	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	BU5T-14474-UA
3	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-931

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
