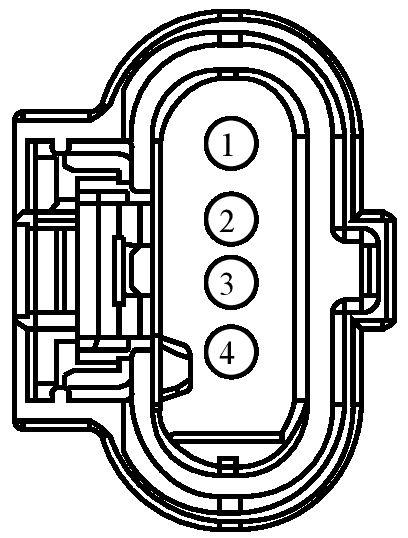

Connector End View (C1454) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1454	MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	EU5T-14474-GAB
2	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	EU5T-14474-GAB
3	VE804 (GN-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	EU5T-14474-GAB
4	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Differential Oil Temperature
Module - Particulate Matter Bank Sensor
Module - Reductant Quality
Noise Generator
Sensor - Fuel Rail Pressure and Temperature
Sensor - Manifold Pressure/Intake Temperature
Sensor - Turbo Intake Pressure/Temperature
Valve - Active Exhaust Solenoid
