Connector End View (C1381E) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1381E POWERTRAIN CONTROL MODULE (PCM) 12C508 part# N/A Not Available

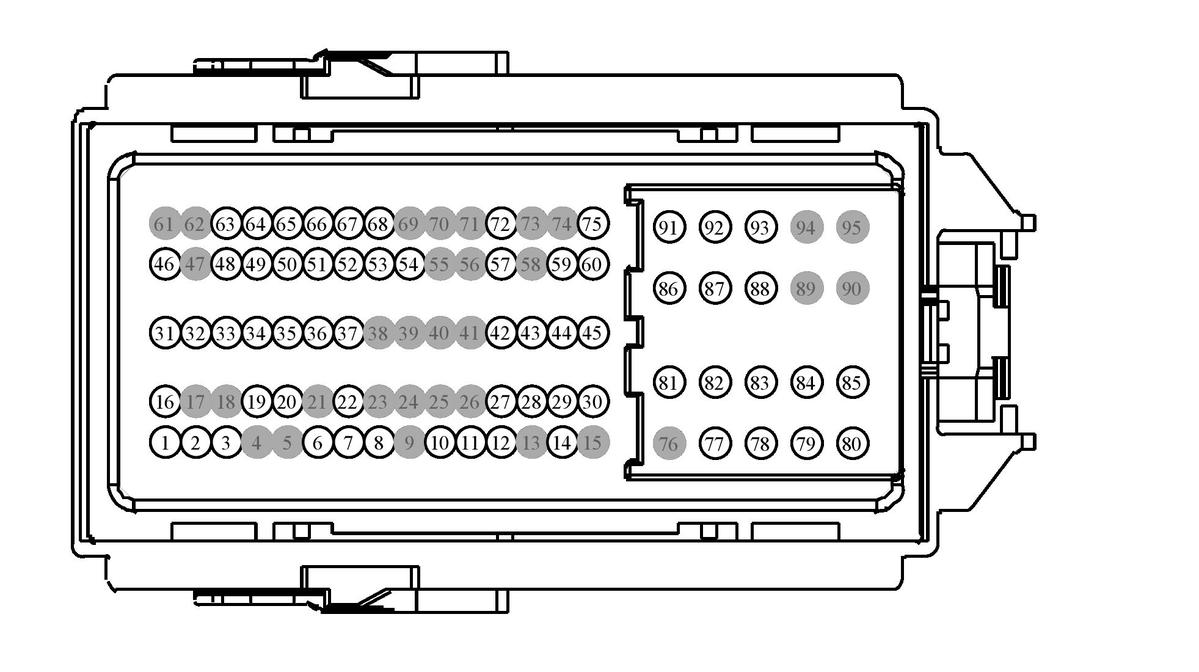

GFDWR1035Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) BU5T-14474-BA
2 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) BU5T-14474-AA
3 CE148 (YE-GY) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE BU5T-14474-BA
4 * * Not Used N/A
5 * * Not Used N/A
6 LE458 (BU-WH) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) BU5T-14474-AA
7 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AA
8 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) BU5T-14474-AA
9 * * Not Used N/A
10 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) BU5T-14474-AA
11 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-AA
12 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) BU5T-14474-AA
13 * * Not Used N/A
14 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) BU5T-14474-BA
15 * * Not Used N/A
16 CE460 (VT-WH) 18 CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV) + BU5T-14474-BA
17 * * Not Used N/A
18 * * Not Used N/A
19 CE358 (GY-YE) 18 CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL BU5T-14474-BA
20 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 BU5T-14474-BA
21 * * Not Used N/A
22 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) BU5T-14474-AA
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + BU5T-14474-AA
28 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + BU5T-14474-AA
29 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-BA
30 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AA
31 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AA
32 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AA
33 VE804 (GN-BN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + BU5T-14474-BA
34 RE804 (GY-BU) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) - BU5T-14474-BA
35 VE821 (WH-VT) 18 SENSOR - VACUUM RESERVOIR PRESSURE (VRP) BU5T-14474-BA
36 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AA
37 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + BU5T-14474-AA
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) BU5T-14474-BA
43 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) BU5T-14474-BA
44 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-AA
45 CET06 (GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AA
46 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) BU5T-14474-AA
47 * * Not Used N/A
48 LE452 (GN) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) BU5T-14474-BA
49 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BA
50 VE802 (BN-BU) 18 SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] BU5T-14474-BA
51 RE324 (BN-GN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] BU5T-14474-BA
52 VE819 (GN-VT) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) BU5T-14474-AA
53 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-BA
54 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + BU5T-14474-AA
55 * * Not Used N/A
56 * * Not Used N/A
57 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) BU5T-14474-BA
58 * * Not Used N/A
59 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-AA
60 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AA
61 * * Not Used N/A
62 * * Not Used N/A
63 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BA
64 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BA
65 VE801 (VT-OG) 18 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-BA
66 RE323 (WH-BN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - BU5T-14474-BA
67 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AA
68 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) BU5T-14474-AA
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) BU5T-14474-BA
73 * * Not Used N/A
74 * * Not Used N/A
75 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AA
76 * * Not Used N/A
77 RE226 (GN-VT) 14 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - 7C3T-14474-EA
78 CE226 (YE-VT) 14 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + 7C3T-14474-EA
79 VYT11 (VT-GY) 16 CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) 7C3T-14474-DA
80 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) 7C3T-14474-DA
81 VYT12 (YE-GN) 16 PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) 7C3T-14474-DA
82 CE207 (VT-GY) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + 7C3T-14474-DA
83 CE206 (GY-YE) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + 7C3T-14474-DA
84 CE205 (GN-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + 7C3T-14474-DA
85 CE208 (YE-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + 7C3T-14474-DA
86 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) 7C3T-14474-DA
87 RE205 (YE-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - 7C3T-14474-DA
88 RE206 (BU-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - 7C3T-14474-DA
89 * * Not Used N/A
90 * * Not Used N/A
91 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) 7C3T-14474-DA
92 RE208 (BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - 7C3T-14474-DA
93 RE207 (GN-VT) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - 7C3T-14474-DA
94 * * Not Used N/A
95 * * Not Used N/A
