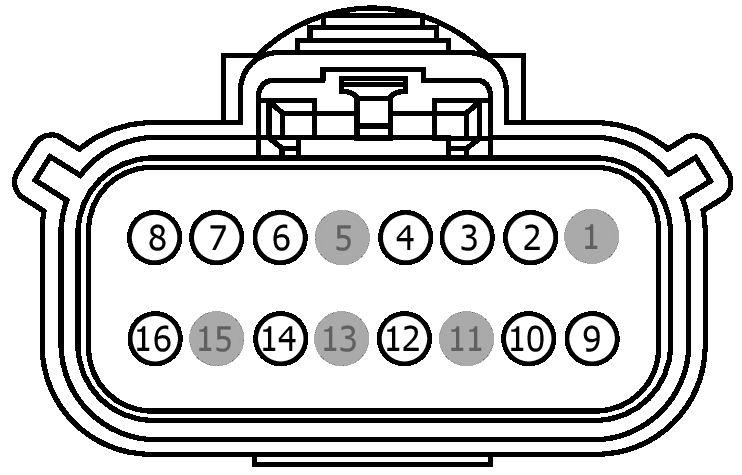

Connector End View (C1284) - HEADLAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1284 |
HEADLAMP ASSEMBLY LH |
BK |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CLF02 (GY-BN) |
20 |
CTRL MOD. - BEAM HIGH LEFT |
BU5T-14474-UA |
| 3 |
CLF61 (GY-BU) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
BU5T-14474-UA |
| 4 |
CBB20 (YE-VT) |
22 |
FUSE - 20 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CLF04 (BN-BU) |
20 |
CTRL MOD. - BEAM LOW LEFT |
BU5T-14474-UA |
| 7 |
CLS21 (BU-GN) |
20 |
CTRL MOD. - TURN LAMP LEFT FRONT |
BU5T-14474-UA |
| 8 |
SBB44 (GN-RD) |
16 |
FUSE - 44 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 9 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
7C3T-14474-DA |
| 10 |
CLS05 (BU-GY) |
20 |
CTRL MOD. - PARK |
BU5T-14474-UA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
BU5T-14474-UA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
VLF22 (VT-GN) |
22 |
RESISTOR VARIABLE - HEADLAMP LEVELING |
BU5T-14474-UA |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
BU5T-14474-UA |
