Connector End View (C1196) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1196 | EVAPORATIVE EMISSION (EVAP) PURGE VALVE | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE113 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) | 97BG-14474-ADA | ||||
| 2 | CBK02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 97BG-14474-ADA | ||||

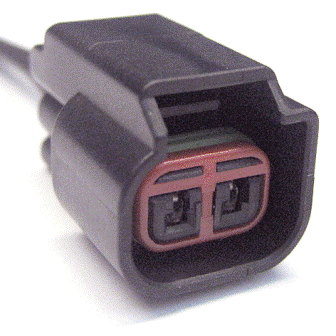

Available Pigtail Kits
Pigtail Kit Part Number WPT-905
Service Part Number:
8U2Z-14S411-EA
Gauge:
16
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Relay - Daytime Running Lamp (DRL)
- Switch - Heater / A/C Blower (Front)
