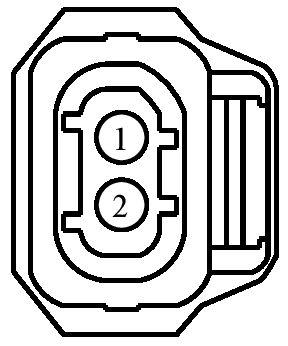

Connector End View (C1181) - FUEL INJECTOR 1

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1181	FUEL INJECTOR 1	14B485			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1L2T-14474-LA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE205 (GN-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	1L2T-14474-LA
2	RE205 (YE-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	1L2T-14474-LA

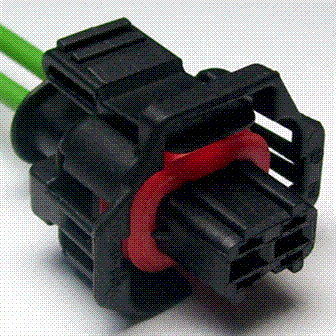

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Fuel Injector
Pump - Fuel Injection
Solenoid - Fuel Volume Regulator Control
