Connector End View (C1168) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1168 | INLINE | BK | 12C50812A699 | See Below | ||||

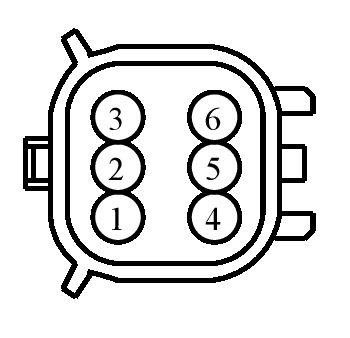

MALE
Harness
12C508

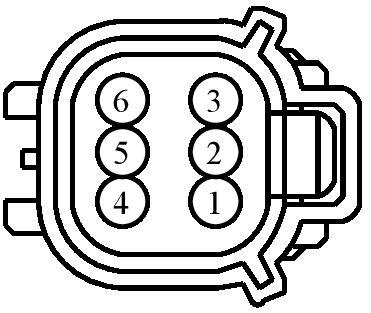

FEMALE
Harness
12A699
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VE716 (YE) | 18 | 12C508 | |
| 1 | VE716 (YE) | 20 | 12A699 | |
| 2 | VE801 (VT-OG) | 18 | 12C508 | |
| 2 | VE801 (VT-OG) | 18 | 12A699 | |
| 3 | VE802 (BN-BU) | 18 | 12A699 | |
| 3 | VE802 (BN-BU) | 18 | 12C508 | |
| 4 | RE454 (YE-GN) | 18 | 12C508 | |
| 4 | RE454 (YE-GN) | 20 | 12A699 | |
| 5 | RE323 (WH-BN) | 18 | 12C508 | |
| 5 | RE323 (WH-BN) | 18 | 12A699 | |
| 6 | RE324 (BN-GN) | 18 | 12C508 |

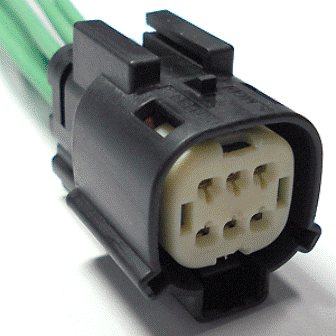

Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
