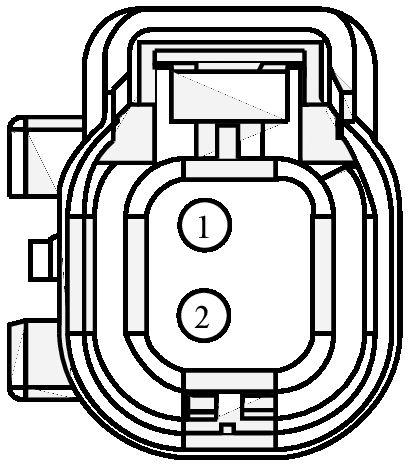

Connector End View (C1164) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1164 |
CYLINDER HEAD TEMPERATURE (CHT) SENSOR |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
7U5T-14474-VA |
| 2 |
RE454 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
7U5T-14474-VA |
