Connector End View (C1148) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1148 | INLINE | BK | 12A5818C290 | See Below | ||||

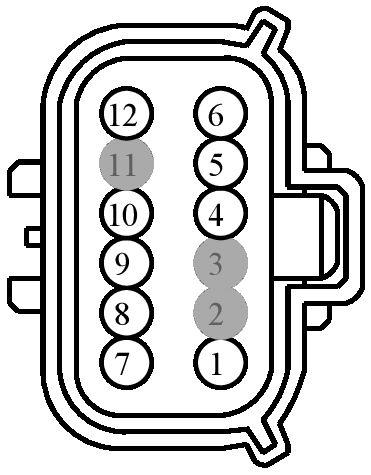

MALE
Harness
12A581

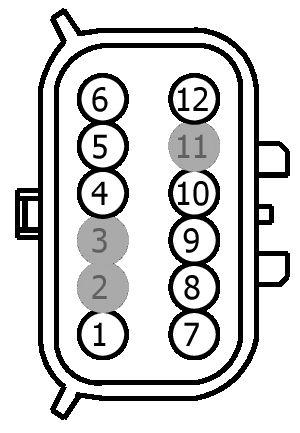

FEMALE
Harness
8C290
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CEC01 (WH-BU) | 20 | ||
| 2 | * | * | ||
| 3 | * | * | ||
| 4 | RE407 (YE-VT) | 18 | 8C290 | |
| 4 | RE407 (YE-VT) | 20 | ||
| 5 | LE424 (YE-GN) | 18 | 8C290 | |
| 5 | LE424 (YE-GN) | 20 | 12A581 | |
| 6 | RE407 (YE-VT) | 20 | ||
| 7 | VH433 (VT-OG) | 20 | ||
| 8 | LE423 (GN-VT) | 20 | ||
| 9 | CEC01 (WH-BU) | 20 | ||
| 10 | LE423 (GN-VT) | 18 | 8C290 | |
| 10 | LE423 (GN-VT) | 20 | ||
| 11 | * | * | ||
| 12 | VE805 (GY-OG) | 18 | 8C290 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
