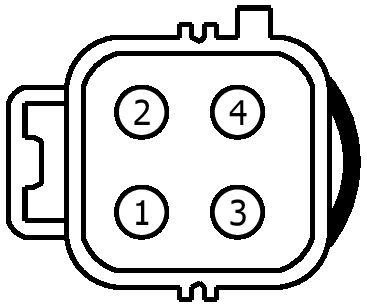

Connector End View (C1147) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1147 | INLINE | DK GY | 12A5818C290 | See Below | ||||
MALE
Harness
12A581
FEMALE
Harness
8C290
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CEC05 (VT-GY) | 10 | ||
| 2 | CEC06 (YE-OG) | 10 | ||
| 2 | GD122 (BK) | 10 | ||
| 3 | CEC07 (BN) | 10 | ||
| 3 | CEC07 (BN) | 10 | 8C290 | |
| 3 | CEC07 (BN) | 6 | 8C290 | |
| 3 | CEC07 (BN) | 6 | 8C290 | |
| 4 | GD122 (BK) | 10 | ||
| 4 | GD122 (BK) | 10 | 8C290 | |
| 4 | GD122 (BK) | 6 | 8C290 |
Available Pigtail Kits

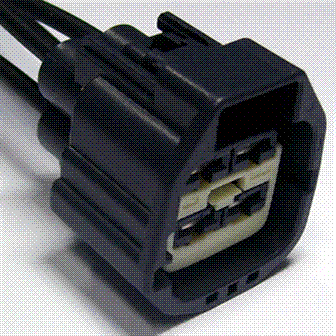

Pigtail Kit Part Number WPT-750
Service Part Number:
3U2Z-14S411-EJAA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1343
- Motor - Engine Cooling Fan

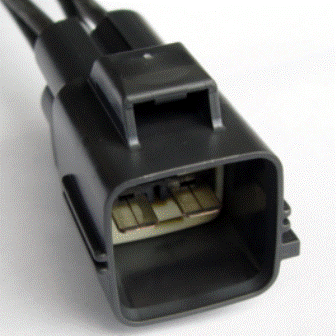

Pigtail Kit Part Number WPT-1343
Service Part Number:
DU2Z-14S411-ABA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-750
- Motor - Engine Cooling Fan
