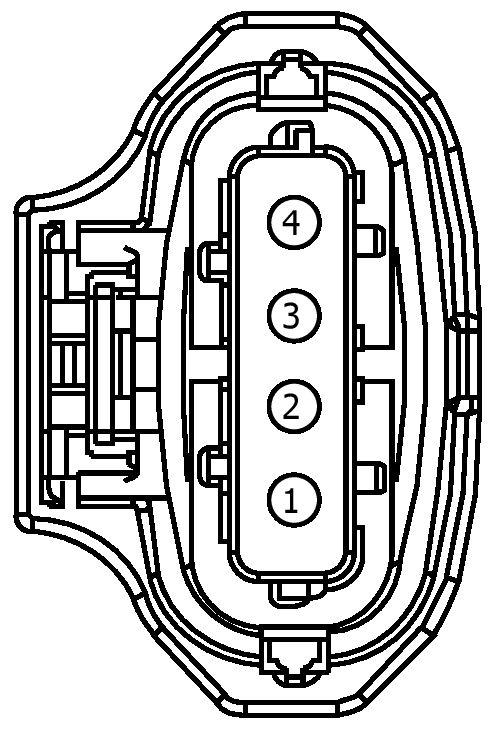

Connector End View (C1087) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1087 |
MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
EU5T-14474-NA |
| 2 |
RE804 (GY-BU) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) - |
EU5T-14474-NA |
| 3 |
LE458 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) |
EU5T-14474-NA |
| 4 |
VE804 (GN-BN) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + |
EU5T-14474-NA |
