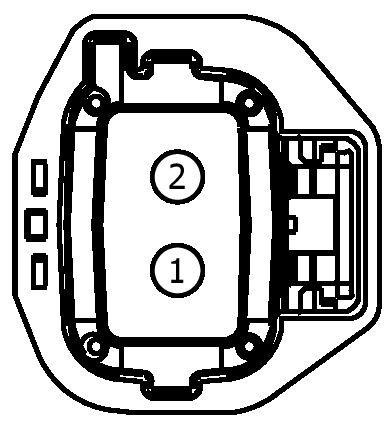

Connector End View (C1074) - COOLING FAN MOTOR 1

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1074	COOLING FAN MOTOR 1	DK GY	8C290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1C1T-14474-AA	KU2Z-14474-AA	6.3

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CEC07 (BN)	6	RELAY - ENGINE COOLING FAN HIGH SPEED	1C1T-14474-AA
1	CEC07 (BN)	10	RELAY - ENGINE COOLING FAN HIGH SPEED	97BG-14474-CFA
2	GD122 (BK)	10	GROUND - FENDER FRONT LEFT # 3RD POINT	97BG-14474-CFA
2	GD122 (BK)	6	GROUND - FENDER FRONT LEFT # 3RD POINT	1C1T-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1417

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EUAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Motor - Engine Cooling Fan
Pump - Fuel (External)
Resistor - Fan Dropping
Trailer Tow - Vehicle Side
