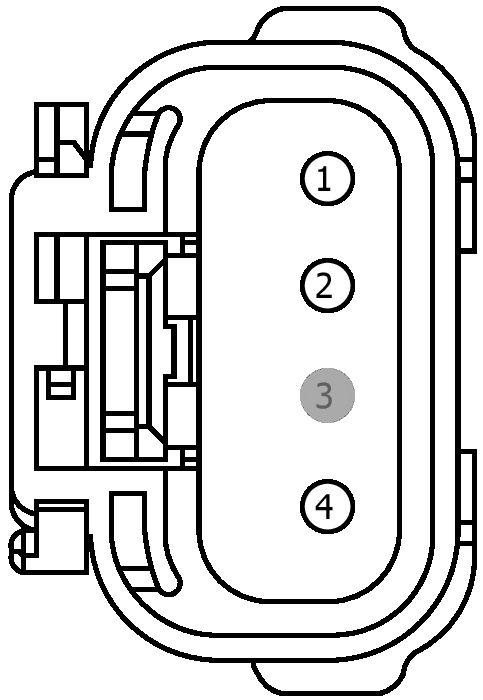

Connector End View (C1048) - COOLING FAN MOTOR 1
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1048 |
COOLING FAN MOTOR 1 |
8C290 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| XF2T-14474-BA |
EU2Z-14474-AA |
2.8 |
| XF2T-14474-CA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD122 (BK) |
6 |
GROUND - FENDER FRONT LEFT # 3RD POINT |
XF2T-14474-BA |
| 1 |
GD122 (BK) |
10 |
GROUND - FENDER FRONT LEFT # 3RD POINT |
XF2T-14474-BA |
| 2 |
CEC07 (BN) |
6 |
RELAY - ENGINE COOLING FAN HIGH SPEED |
XF2T-14474-BA |
| 2 |
CEC07 (BN) |
10 |
RELAY - ENGINE COOLING FAN HIGH SPEED |
XF2T-14474-BA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CEC01 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL (FC2) |
XF2T-14474-CA |
