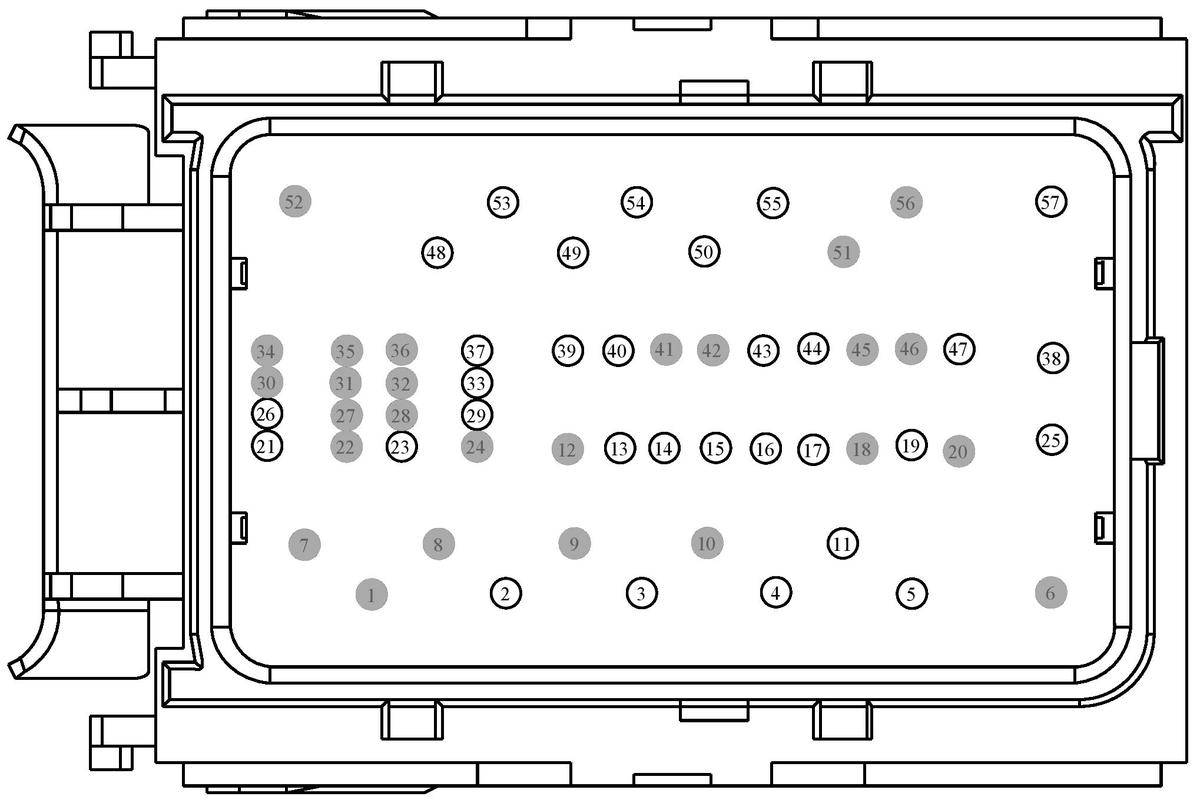

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1035B |
BATTERY JUNCTION BOX (BJB) |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| XL3T-14474-BA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
SBB81 (RD) |
12 |
FUSE - 81 OR CIRCUIT BREAKER |
DU5T-14474-LBA |
| 3 |
SBB77 (GY-RD) |
14 |
FUSE - 77 OR CIRCUIT BREAKER |
DU5T-14474-LBA |
| 4 |
SBB73 (RD) |
16 |
FUSE - 73 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 5 |
CRW25 (BU-GY) |
16 |
RELAY - FRONT WIPER PARK |
DU5T-14474-JBA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
SBB44 (GN-RD) |
16 |
FUSE - 44 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CE371 (YE-OG) |
16 |
CTRL MOD. - POWERTRAIN # POWER TRANSFER UNIT OIL COOLING FAN |
7C3T-14474-DA |
| 14 |
SBB55 (WH-RD) |
16 |
FUSE - 55 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 15 |
CPS58 (WH-BN) |
20 |
RELAY - 2ND ROW SEAT RELEASE ENABLE |
BU5T-14474-UA |
| 16 |
SBB54 (BN-RD) |
20 |
FUSE - 54 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 17 |
CBB21 (BU-GY) |
16 |
FUSE - 21 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CRW12 (GY-OG) |
20 |
SWITCH - REAR WASHER |
BU5T-14474-UA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
CRD02 (BN-BU) |
22 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
DU5T-14474-TAB |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
VE203 (VT) |
22 |
CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) |
DU5T-14474-TAB |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
SBB65 (RD) |
16 |
FUSE - 65 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 26 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
CU5T-14474-EB |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
CRW13 (GN) |
20 |
SWITCH - REAR WIPER |
CU5T-14474-EB |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
CRW34 (BU-BN) |
22 |
CTRL MOD. - REAR WASHER |
DU5T-14474-TAB |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
CDC40 (VT-GY) |
22 |
RELAY - DELAY ACCESSORY |
DU5T-14474-TAB |
| 38 |
CE608 (VT-GN) |
10 |
RELAY - FUEL PUMP |
DU5T-14474-NBA |
| 39 |
CRW13 (GN) |
16 |
SWITCH - REAR WIPER |
7C3T-14474-DA |
| 40 |
CBB23 (BN-YE) |
20 |
FUSE - 23 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
CBB25 (WH-OG) |
20 |
FUSE - 25 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 44 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
CLN09 (YE-GN) |
22 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
BU5T-14474-UA |
| 48 |
SBB17 (RD) |
16 |
FUSE - 17 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 49 |
CRW03 (VT-WH) |
14 |
RELAY - FRONT WIPER |
DU5T-14474-LBA |
| 50 |
CRH04 (VT-GN) |
16 |
CTRL MOD. - RELAY HORN |
DU5T-14474-JBA |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
* |
* |
Not Used |
N/A |
| 53 |
CRW25 (BU-GY) |
14 |
RELAY - FRONT WIPER PARK |
DU5T-14474-LBA |
| 54 |
SBB76 (GN-RD) |
14 |
FUSE - 76 OR CIRCUIT BREAKER |
DU5T-14474-LBA |
| 55 |
SBB72 (VT-RD) |
14 |
FUSE - 72 OR CIRCUIT BREAKER |
DU5T-14474-LBA |
| 56 |
* |
* |
Not Used |
N/A |
| 57 |
SBB87 (WH-RD) |
10 |
FUSE - 87 OR CIRCUIT BREAKER |
XL3T-14474-BA |
