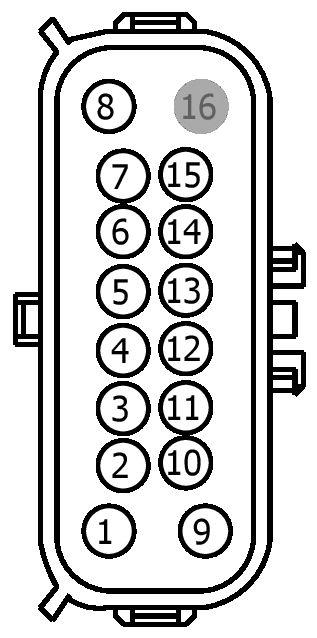

Connector End View (C1033) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1033 | INLINE | BK | 12C50814B485 | See Below | ||||
MALE
Harness
12C508
FEMALE
Harness
14B485
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CE205 (GN-BU) | 16 | 12C508 | |
| 1 | CE205 (GN-BU) | 18 | 14B485 | |
| 2 | RE323 (WH-BN) | 18 | 12C508 | |
| 2 | RE323 (WH-BN) | 20 | 14B485 | |
| 3 | VE801 (VT-OG) | 18 | 12C508 | |
| 3 | VE801 (VT-OG) | 20 | 14B485 | |
| 4 | CE206 (GY-YE) | 16 | 12C508 | |
| 4 | CE206 (GY-YE) | 18 | 14B485 | |
| 5 | CE207 (VT-GY) | 16 | 12C508 | |
| 5 | CE207 (VT-GY) | 18 | 14B485 | |
| 6 | CE208 (YE-OG) | 16 | 12C508 | |
| 6 | CE208 (YE-OG) | 18 | 14B485 | |
| 7 | RE324 (BN-GN) | 18 | 12C508 | |
| 7 | RE324 (BN-GN) | 20 | 14B485 | |
| 8 | VE802 (BN-BU) | 18 | 12C508 | |
| 8 | VE802 (BN-BU) | 20 | 14B485 | |
| 9 | RE205 (YE-BU) | 16 | 12C508 | |
| 9 | RE205 (YE-BU) | 18 | 14B485 | |
| 10 | RE454 (YE-GN) | 20 | ||
| 11 | LE238 (GY) | 20 | ||
| 12 | RE206 (BU-OG) | 16 | 12C508 | |
| 12 | RE206 (BU-OG) | 18 | 14B485 | |
| 13 | RE207 (GN-VT) | 16 | 12C508 | |
| 13 | RE207 (GN-VT) | 18 | 14B485 | |
| 14 | RE208 (BU) | 16 | 12C508 | |
| 14 | RE208 (BU) | 18 | 14B485 | |
| 15 | LE423 (GN-VT) | 20 |
Available Pigtail Kits

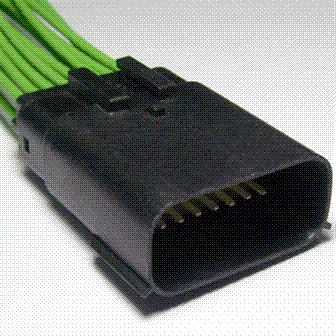

Pigtail Kit Part Number WPT-1404
Service Part Number:
EU2Z-14S411-VA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mating Connector WPT-1279
- Mirror - Sideview

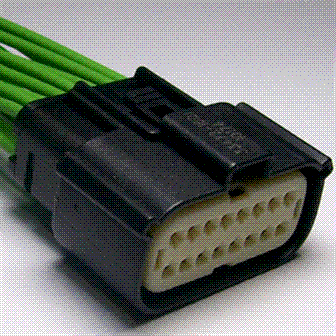

Pigtail Kit Part Number WPT-1279
Service Part Number:
CU2Z-14S411-ADA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Mating Connector WPT-1404
- Module - Heated Seat (driver)
- Module - Transfer Case Shift Control
