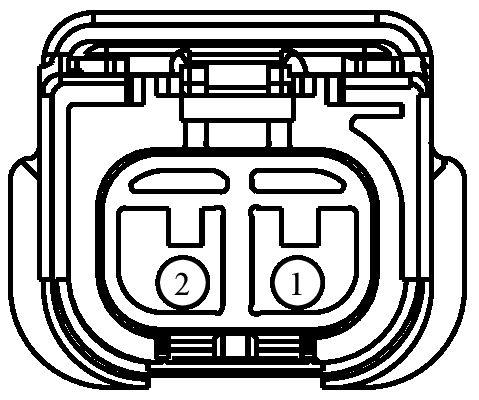

Connector End View (C1029) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1029 | EVAPORATIVE EMISSION (EVAP) PURGE VALVE | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) | 97BG-14474-AEA | ||||
| 2 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 97BG-14474-AEA | ||||

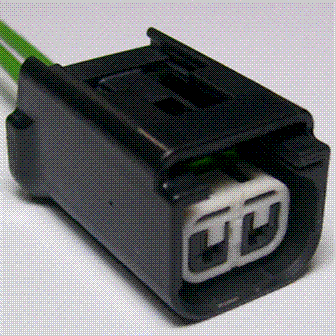

Available Pigtail Kits
Pigtail Kit Part Number WPT-1133
Service Part Number:
BU2Z-14S411-FA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Coil - Ignition
