Connector End View (C1019) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1019 | INLINE | 14A28012A581 | Not Available | |||||

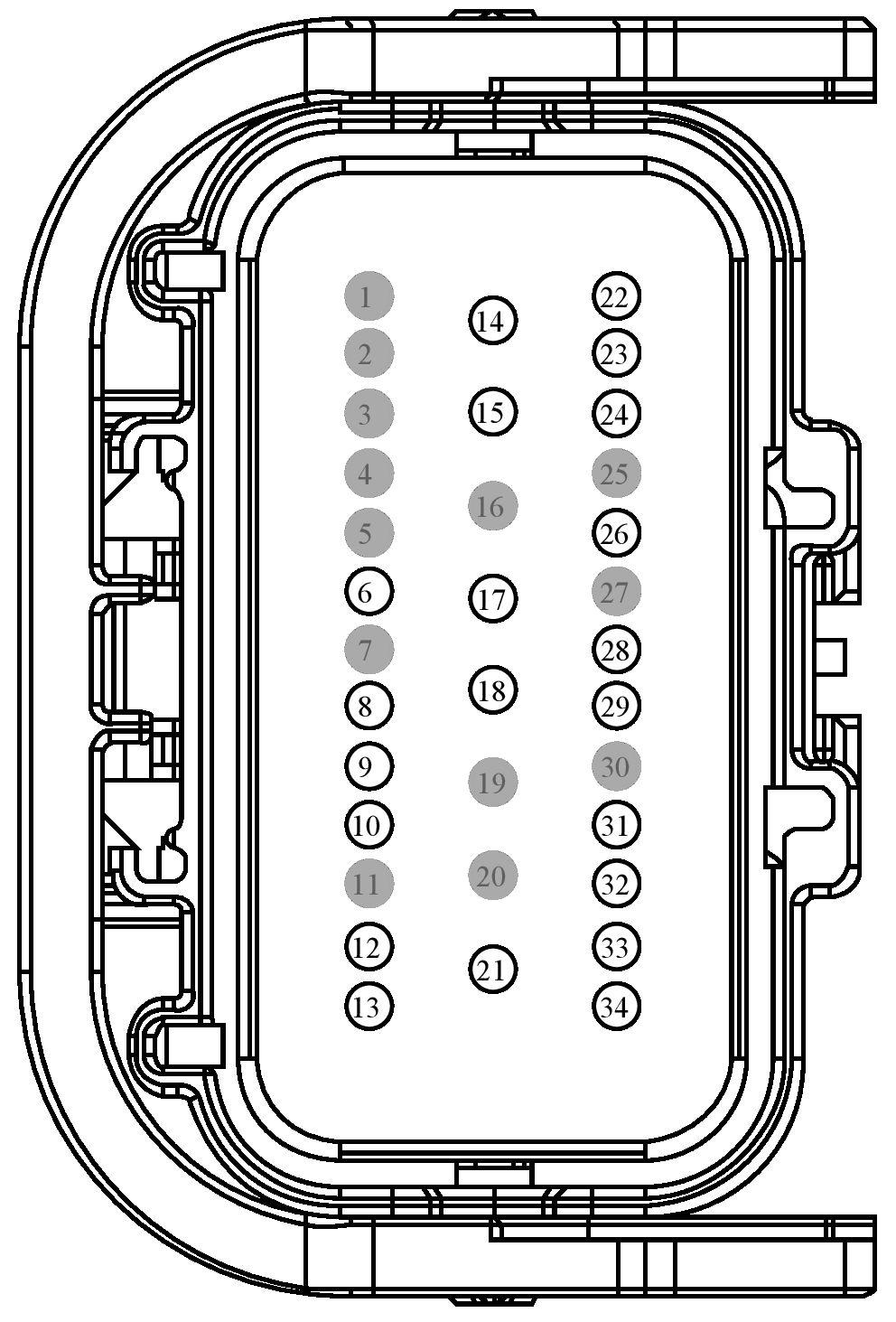

MALE
Harness
14A280

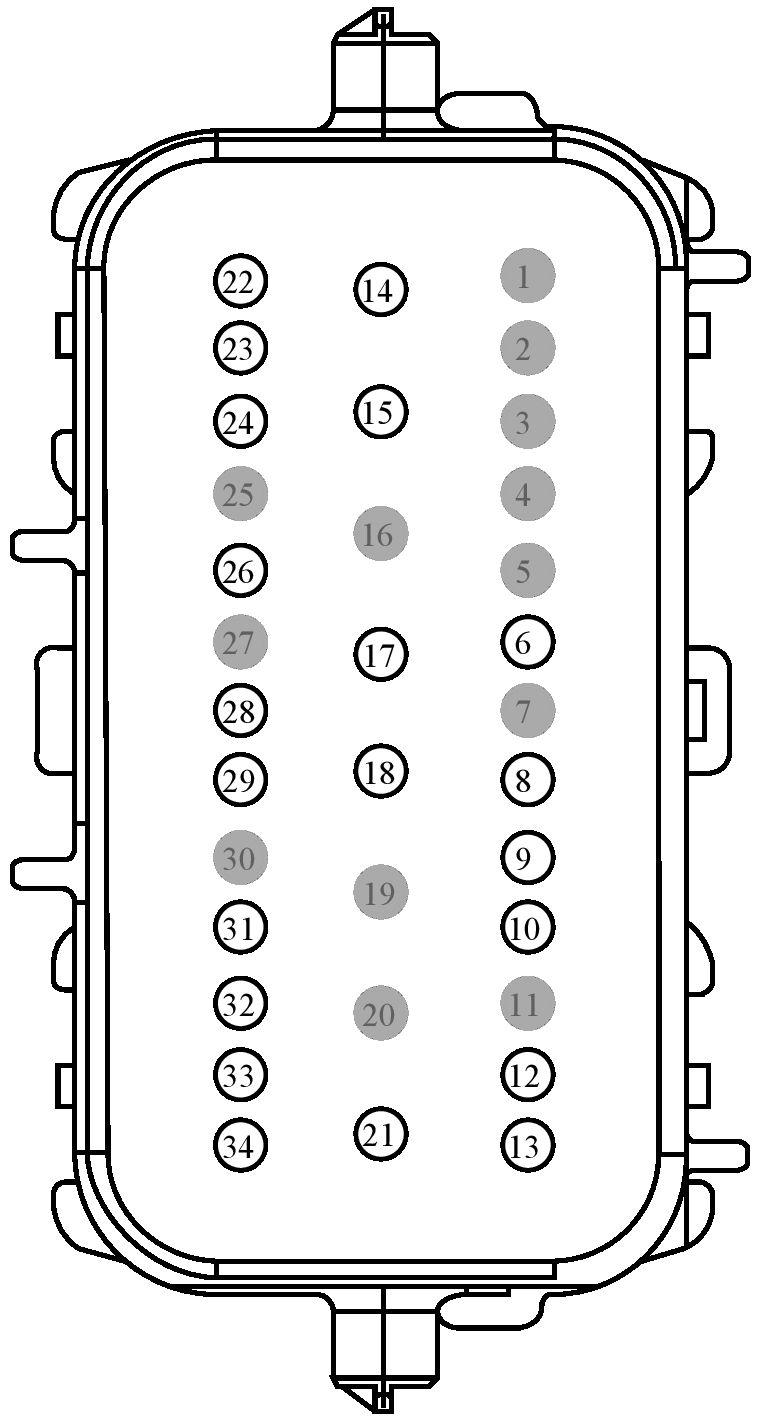

FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | * | * | 14A280 | |
| 3 | VYT11 (VT-GY) | 22 | 12A581 | |
| 4 | * | * | 14A280 | |
| 4 | VYT12 (YE-GN) | 22 | 12A581 | |
| 5 | * | * | ||
| 6 | VDC61 (VT-GN) | 20 | 14A280 | |
| 6 | VDC61 (VT-GN) | 22 | 12A581 | |
| 7 | * | * | ||
| 8 | LDC59 (BU-WH) | 20 | 14A280 | |
| 8 | LDC59 (BU-WH) | 22 | 12A581 | |
| 9 | LE423 (GN-VT) | 20 | 14A280 | |
| 9 | LE423 (GN-VT) | 22 | 12A581 | |
| 10 | VE462 (WH-BN) | 20 | 14A280 | |
| 10 | VE462 (WH-BN) | 22 | 12A581 | |
| 11 | * | * | ||
| 12 | RDC59 (GY-BN) | 20 | 14A280 | |
| 12 | RDC59 (GY-BN) | 22 | 12A581 | |
| 13 | VET27 (BN-YE) | 20 | 14A280 | |
| 13 | VET27 (BN-YE) | 22 | 12A581 | |
| 14 | CDC25 (BN-GN) | 12 | ||
| 15 | SBB55 (WH-RD) | 16 | ||
| 16 | * | * | 14A280 | |
| 16 | SBB72 (VT-RD) | 14 | 12A581 | |
| 17 | CE371 (YE-OG) | 16 | ||
| 18 | CBB19 (BN-WH) | 16 | ||
| 19 | * | * | 14A280 | |
| 19 | CBB21 (BU-GY) | 16 | 12A581 | |
| 20 | * | * | ||
| 21 | GD120 (BK-GN) | 16 | ||
| 22 | CBK03 (GY) | 18 | ||
| 23 | CH307 (GY-BU) | 18 | 14A280 | |
| 23 | CH307 (GY-BU) | 22 | 12A581 | |
| 24 | RE407 (YE-VT) | 20 | 14A280 | |
| 24 | RE407 (YE-VT) | 22 | 12A581 | |
| 25 | * | * | ||
| 26 | CH401 (VT-WH) | 20 | ||
| 27 | * | * | ||
| 28 | CDC10 (BU-OG) | 20 | 14A280 | |
| 28 | CDC10 (BU-OG) | 22 | 12A581 | |
| 29 | CDC15 (VT) | 20 | 14A280 | |
| 29 | CDC15 (VT) | 22 | 12A581 | |
| 30 | CDC56 (WH) | 22 | 12A581 | |
| 30 | SDC57 (BU-OG) | 20 | 14A280 | |
| 30 | SDC57 (BU-OG) | 22 | 12A581 | |
| 31 | VDB25 (GN-OG) | 20 | 14A280 | |
| 31 | VDB25 (GN-OG) | 22 | 12A581 | |
| 32 | VDB26 (GY-BU) | 20 | 14A280 | |
| 32 | VDB26 (GY-BU) | 22 | 12A581 | |
| 33 | VDB25 (GN-OG) | 20 | 14A280 | |
| 33 | VDB25 (GN-OG) | 22 | 12A581 | |
| 34 | VDB26 (GY-BU) | 20 | 14A280 |
