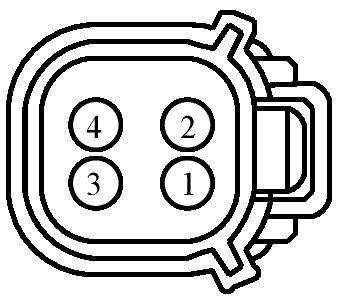

Connector End View (C1010) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1010 | INLINE | BK | 14A28013A840 | See Below | ||||
MALE
Harness
14A280
FEMALE
Harness
13A840
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CE371 (YE-OG) | 16 | ||
| 2 | VET27 (BN-YE) | 20 | ||
| 3 | GD120 (BK-GN) | 16 |
Available Pigtail Kits

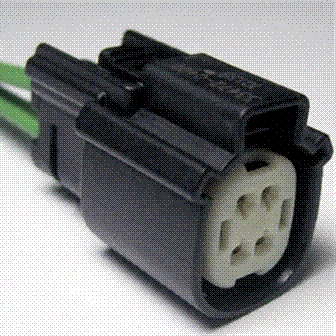

Pigtail Kit Part Number WPT-1288
Service Part Number:
CU2Z-14S411-ZA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570
Service Part Number:
CU2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - RH - Front
- Connector - Inline
- Lamp - Fog/Driving
- Lamp - Liftgate Applique
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1498
Service Part Number:
BU2Z-14S411-TB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Lamp - Reverse
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Speaker - Subwoofer
- Switch - Heated Seat - LH - Rear
- Switch - Heated Seat - RH - Rear
- Valve - Active Exhaust Solenoid
Pigtail Kit Part Number WPT-1171
Service Part Number:
BU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
