Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure can be used for all locations of the component.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

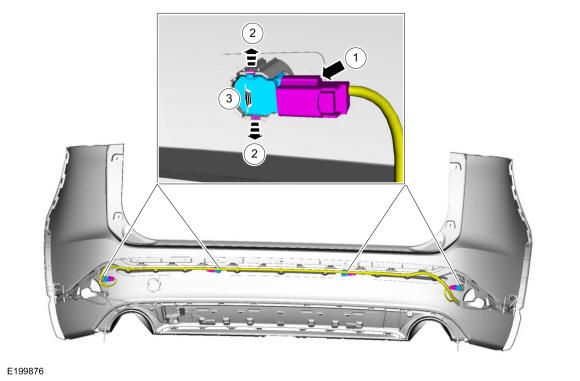

  2. Remove the rear park aid sensor.

    1. Disconnect the rear park aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the park aid sensor from the bracket.

GFD282560Courtesy of FORD MOTOR COMPANY
