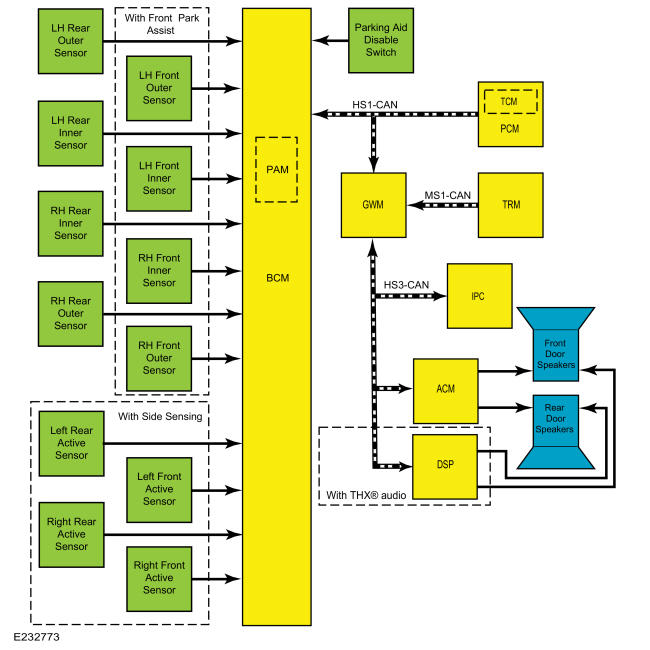

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

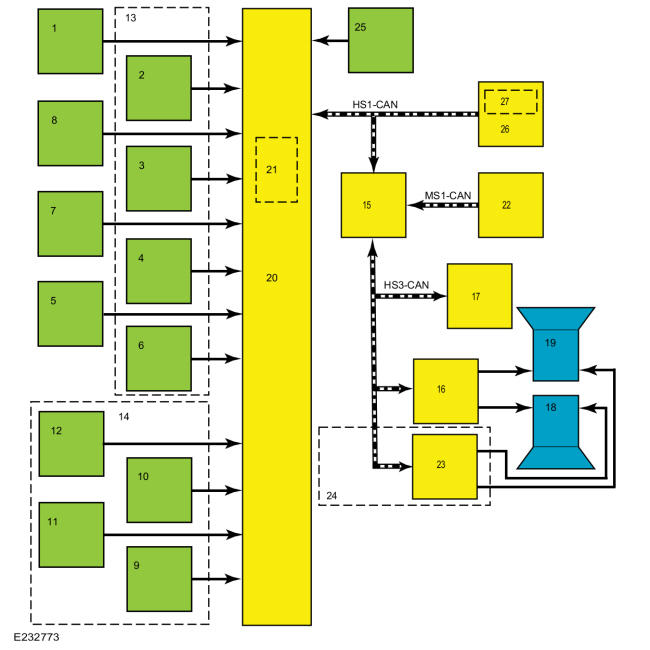

| Item | Description |
|---|---|
| 1 | LH Rear Outer Sensor |
| 2 | LH Front Outer Sensor |
| 3 | LH Front Inner Sensor |
| 4 | RH Front Inner Sensor |
| 5 | RH Rear Outer Sensor |
| 6 | RH Front Outer Sensor |
| 7 | RH Rear Inner Sensor |
| 8 | LH Rear Inner Sensor |
| 9 | Right Front Active Sensor |
| 10 | Left Front Active Sensor |
| 11 | Right Rear Active Sensor |
| 12 | Left Rear Active Sensor |
| 13 | With Front Park Assist |
| 14 | With Side Sensing |
| 15 | GWM |
| 16 | ACM |
| 17 | IPC |
| 18 | Rear Door Speakers |
| 19 | Front Door Speakers |
| 20 | BCM |
| 21 | PAM |
| 22 | TRM |
| 23 | DSP |
| 24 | With THX® audio |
| 25 | Parking Aid Disable Switch |
| 26 | PCM |
| 27 | TCM |
