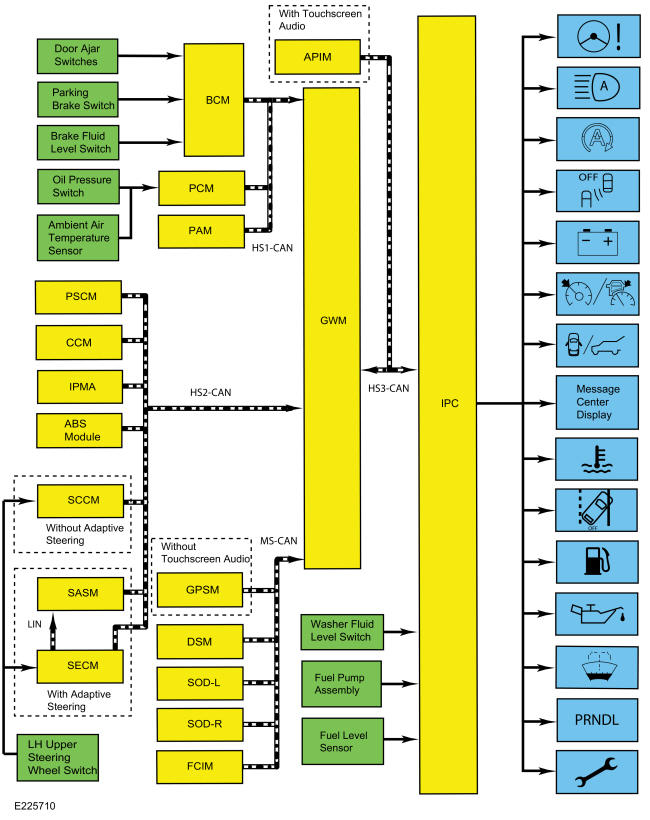

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

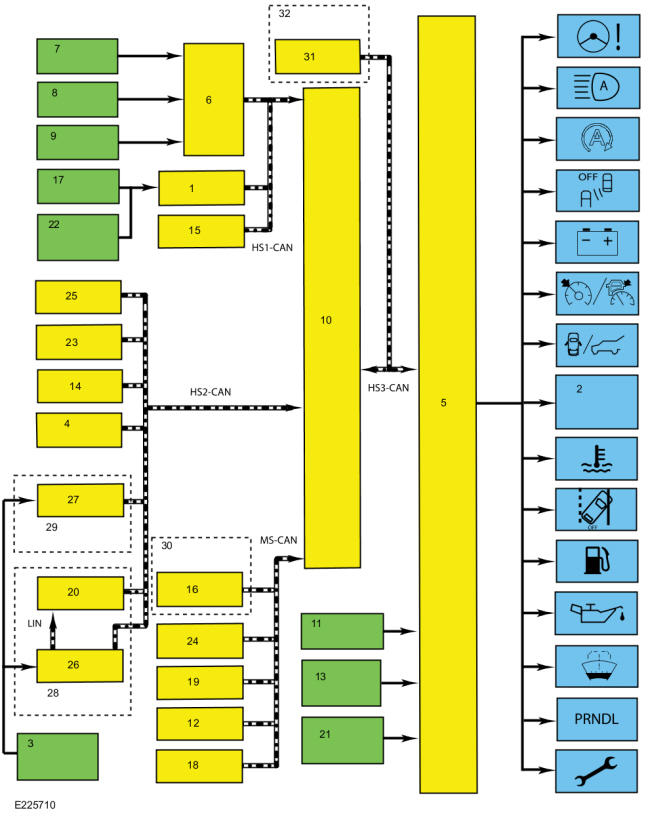

| Item | Description |
|---|---|
| 1 | PCM |
| 2 | Message center display |
| 3 | LH upper steering wheel switch |
| 4 | ABS module |
| 5 | IPC |
| 6 | BCM |
| 7 | Door ajar switches |
| 8 | Parking brake switch |
| 9 | Brake fluid level switch |
| 10 | GWM |
| 11 | Washer fluid level switch |
| 12 | SODR |
| 13 | Fuel pump assembly |
| 14 | IPMA |
| 15 | PAM |
| 16 | GPSM |
| 17 | Oil pressure switch |
| 18 | FCIM |
| 19 | SODL |
| 20 | SASM |
| 21 | Fuel level sensor |
| 22 | Ambient air temperature sensor |
| 23 | CCM |
| 24 | DSM |
| 25 | PSCM |
| 26 | Steering Effort Control Module (SECM) |
| 27 | SCCM |
| 28 | With adaptive steering |
| 29 | Without adaptive steering |
| 30 | Without touchscreen audio |
| 31 | APIM |
| 32 | With touchscreen audio |
