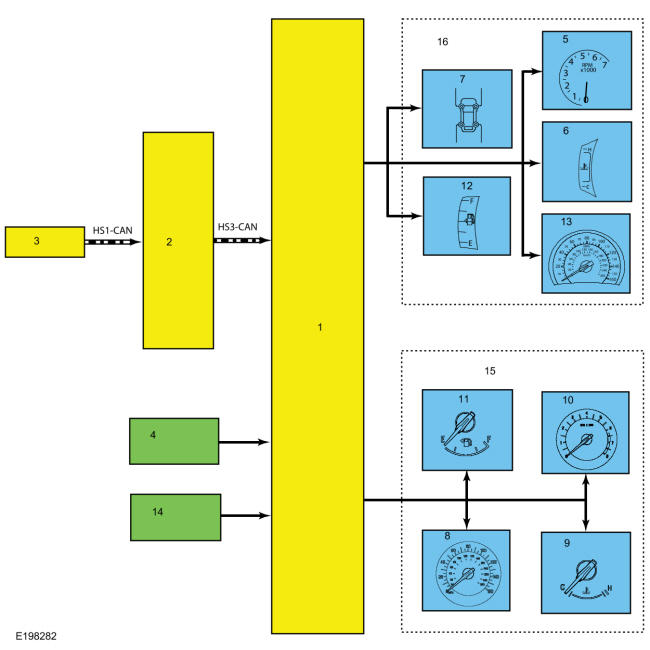

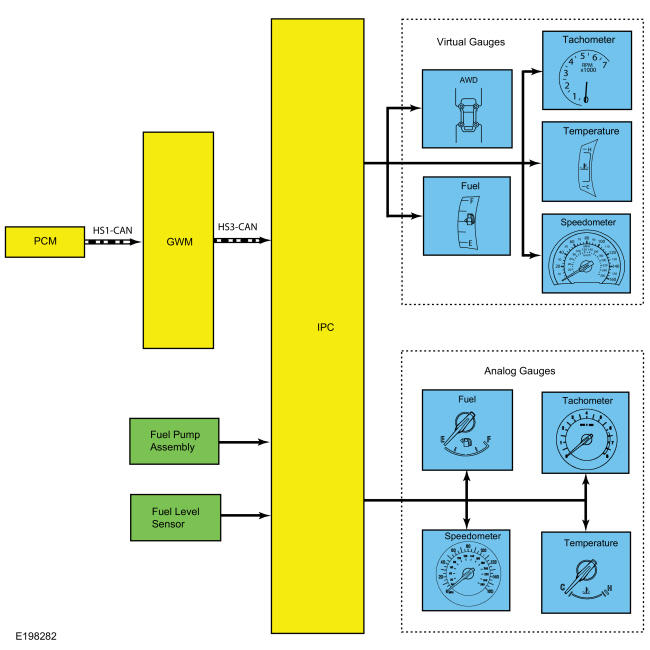

System Diagram - Gauges
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IPC |
| 2 |
GWM |
| 3 |
PCM |
| 4 |
Fuel pump assembly |
| 5 |
Tachometer |
| 6 |
Temperature |
| 7 |
AWD |
| 8 |
Speedometer |
| 9 |
Temperature |
| 10 |
Tachometer |
| 11 |
Fuel |
| 12 |
Fuel |
| 13 |
Speedometer |
| 14 |
Fuel level sensor |
| 15 |
Analog gauges |
| 16 |
Virtual gauges |
