Thermostatic Expansion Valve - 3.5L Duratec (212kW/278PS): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

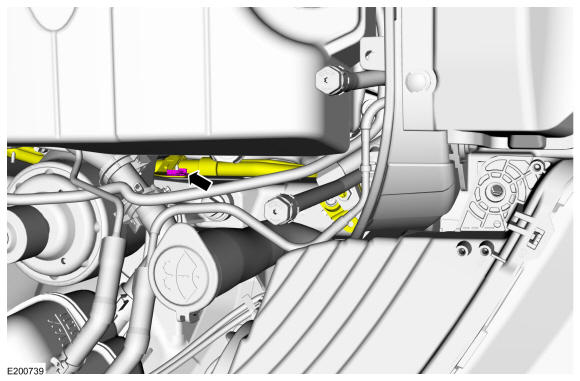

Remove the evaporator inlet and outlet manifold bracket nut.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the upper intake manifold. Refer to: Upper Intake Manifold .
NOTE: Make sure that all openings are sealed.

Remove the evaporator inlet and outlet manifold nut, disconnect the fitting.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the thermostatic expansion valve.
Torque: 71 lb.in (8 Nm)
