Thermostatic Expansion Valve - 2.7L EcoBoost (238kW/324PS): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

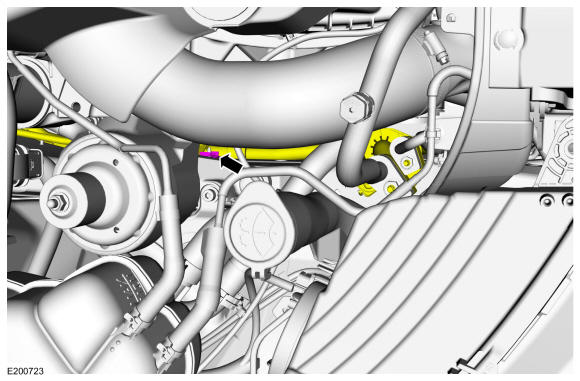

Remove the evaporator inlet and outlet manifold bracket nut.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

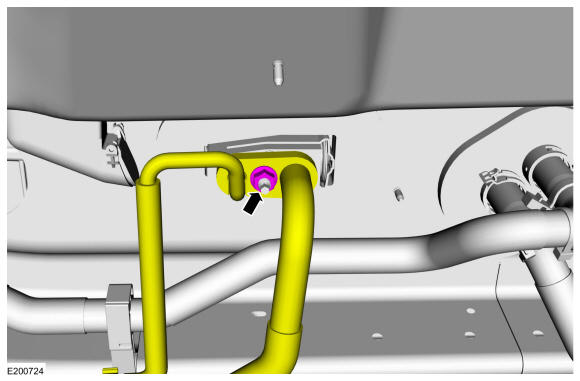

Remove the evaporator inlet and outlet manifold nut, disconnect the fitting.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

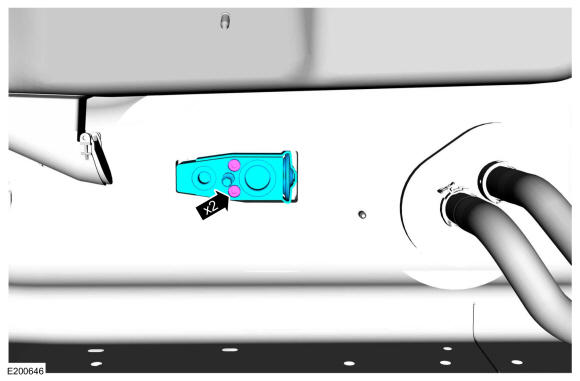

Remove the bolts and the thermostatic expansion valve.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
