Receiver Drier Element - 3.5L Duratec (212kW/278PS): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

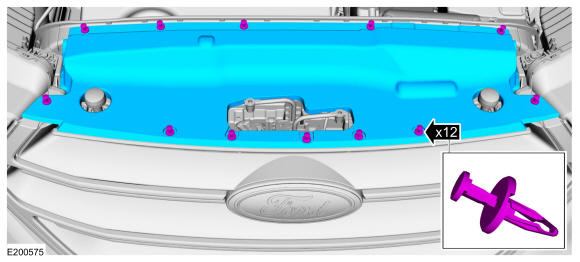

- Remove the retainers and the upper air deflector.
-
- Remove the upper cooling module support brackets.

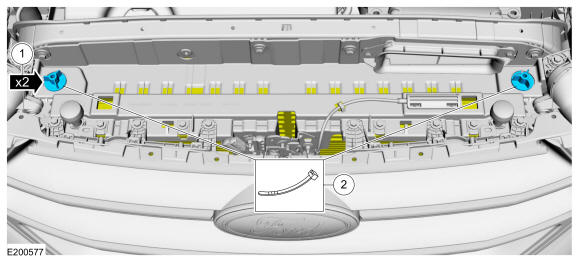

- Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

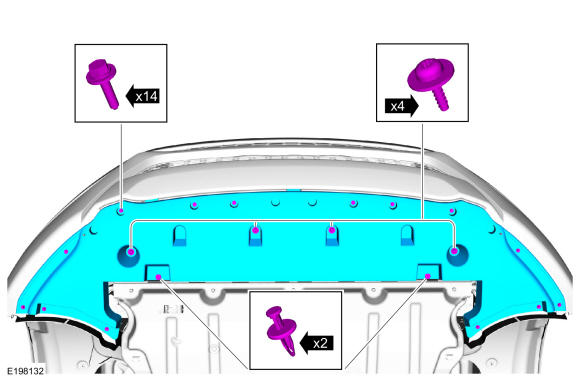

- Remove the bolts, the retainers and the front underbody shield.

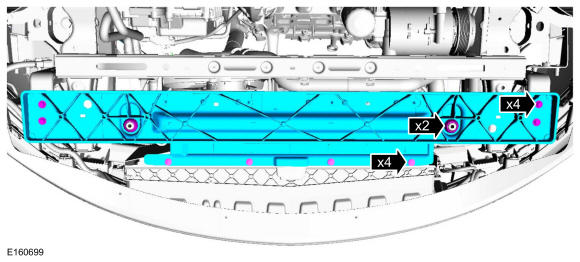

- Remove the retainers, bolts and the cooling module support panel.
Torque: 18 lb.ft (24 Nm)

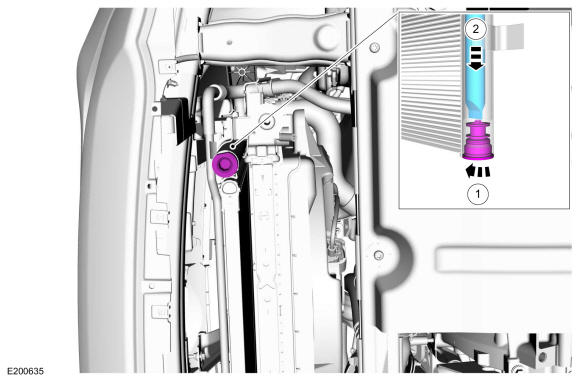

- Remove the receiver drier plug and the receiver drier element.
