Driver Side Register: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

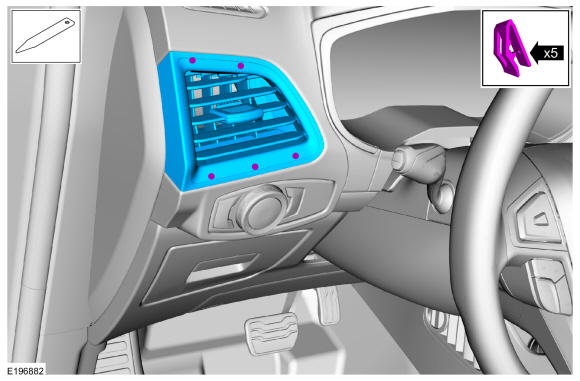

  1. Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD282463Courtesy of FORD MOTOR COMPANY

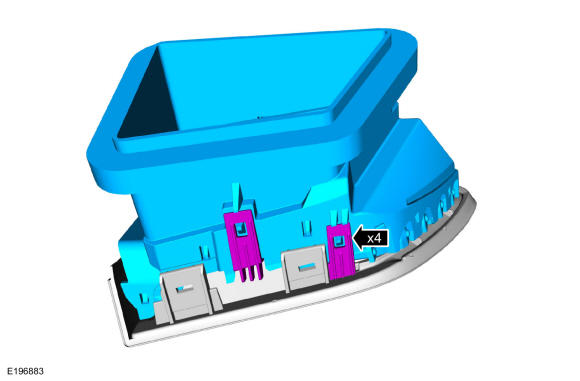

  2. Release the clips and remove the driver side register assembly.
GFD282464Courtesy of FORD MOTOR COMPANY
