Condenser Outlet Line - 3.5L Duratec (212kW/278PS): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

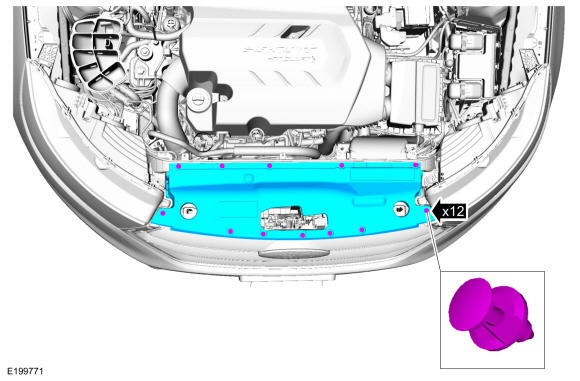

Remove the pin-type retainers and the radiator site shield.

Courtesy of FORD MOTOR COMPANY

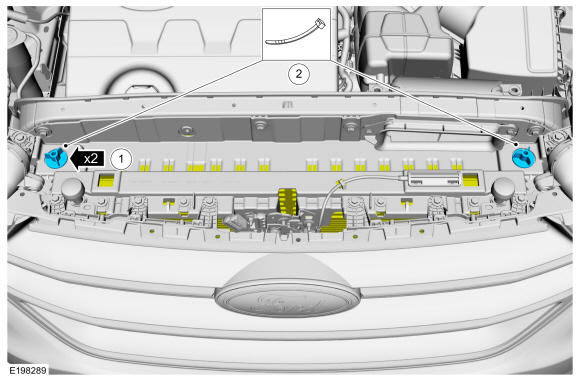

1. Remove the radiator guide pins.
2. Using cable ties loosely support the cooling module.
Courtesy of FORD MOTOR COMPANY

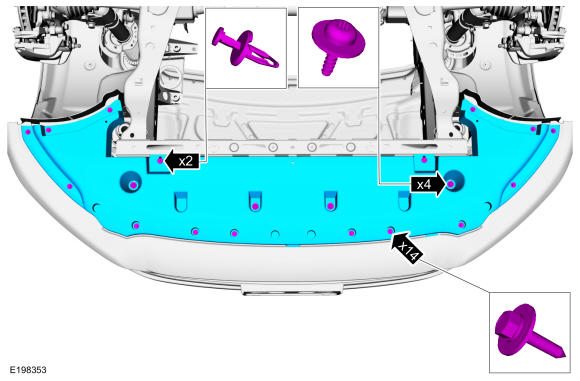

Remove the retainers and the front under body shield.

Courtesy of FORD MOTOR COMPANY

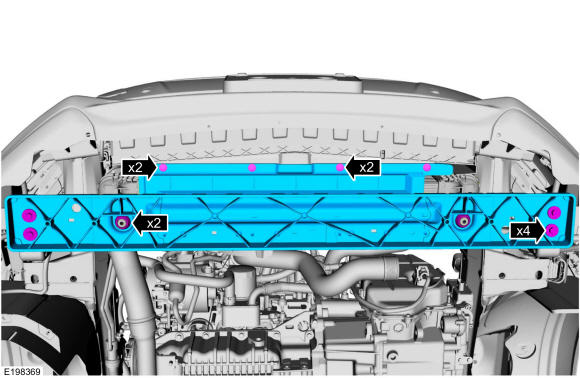

Remove the retainers and the lower radiator support.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

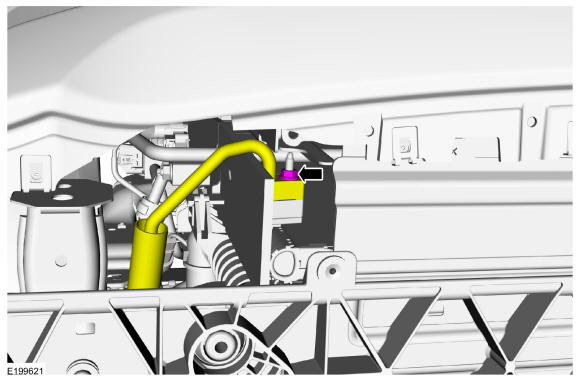

Remove the condenser outlet line nut and the disconnect the fitting.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

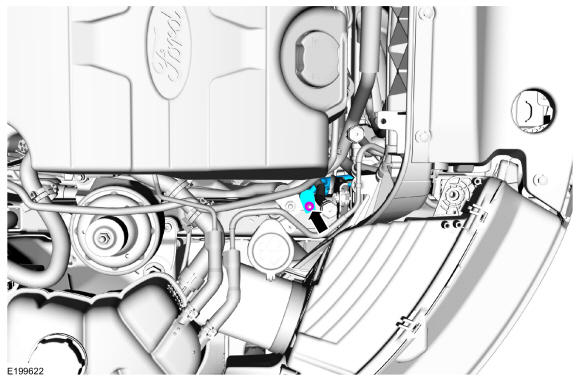

Remove the condenser outlet line nut, disconnect the fitting and remove the condenser outlet line.

Torque: 80 lb.in (9 Nm)
