Condenser - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

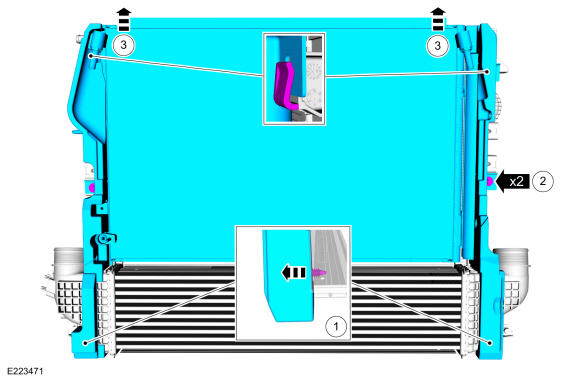

- Remove the cooling module. Refer to: Cooling Module .
-
- Detach the pin-type retainers securing the condenser seals.
- Remove the bolts.
Torque: 53 lb.in (6 Nm)
- Remove the condenser and the seals.
