Condenser - 2.0L EcoBoost (184kW/250PS) - MI4: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .
- Remove the cooling module seals.

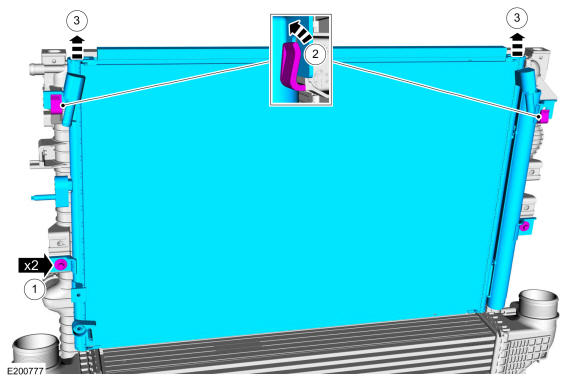

- Remove the bolts, release the tabs and remove the condenser.
Torque: 53 lb.in (6 Nm)
