Cabin Heater Coolant Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Remove the pressure relief cap.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the bolts, the retainers and the front underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers, bolts and the cooling module support panel.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

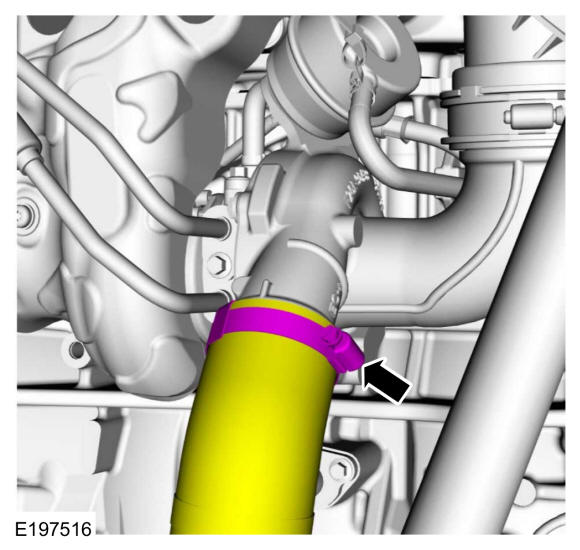

Loosen the clamp and position the CAC tube aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

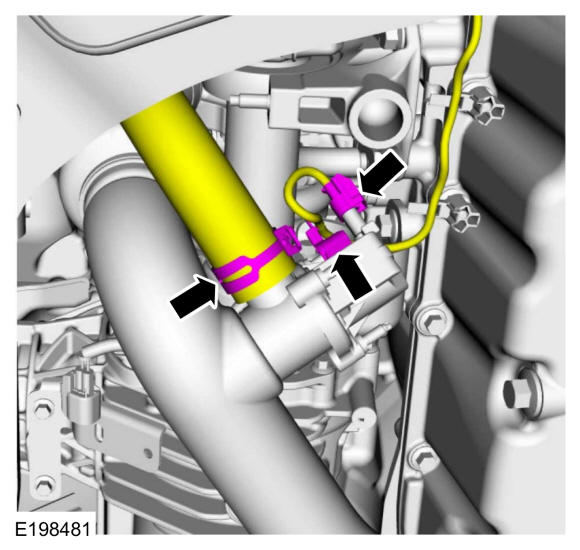

- Release the clamp and disconnect the CAC hose.
- Disconnect the electrical connector and detach the wire retainer.
Courtesy of FORD MOTOR COMPANY

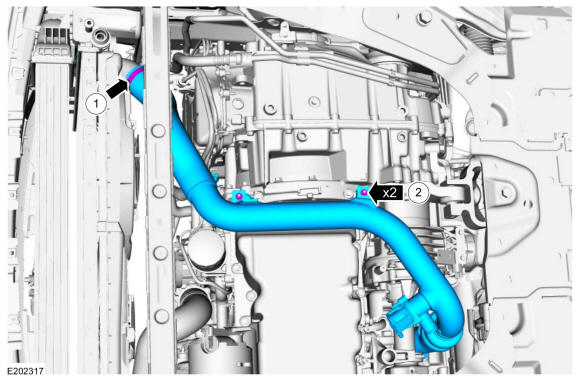

Loosen the clamp and remove the nuts and the CAC tube.
Torque:

1: 44 lb.in (5 Nm)

2: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

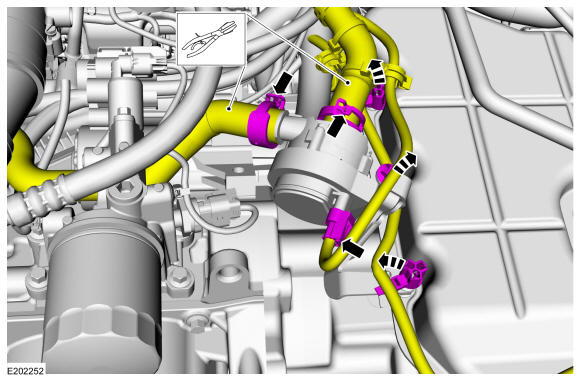

- Release the clamps and disconnect the heater inlet and outlet hoses. Use the General Equipment: Hose Clamp(s)
- Disconnect the electrical connector and detach the wire retainers.
- Position aside the wiring harness and the heater inlet and outlet hoses.
Courtesy of FORD MOTOR COMPANY

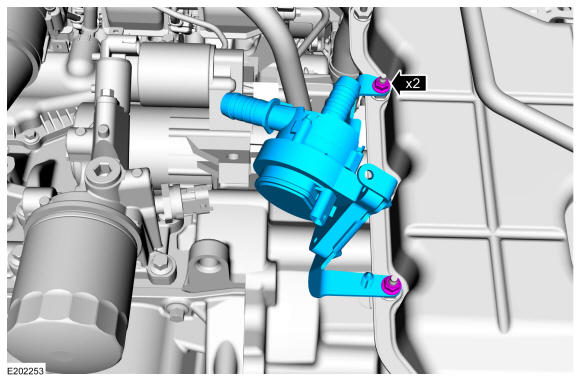

Remove the nuts and the cabin heater coolant pump.
Torque: 80 lb.in (9 Nm)
