Air Conditioning (A/C) Pressure Transducer: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 3.5L engine shown, all others are similar.

NOTE: Removal steps in this procedure may contain installation details.

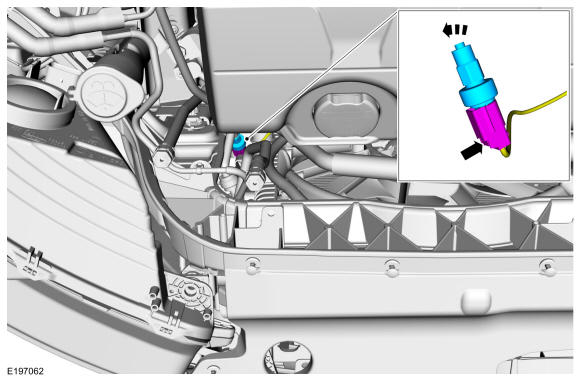

Disconnect the electrical connector and remove the A/C pressure transducer.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
