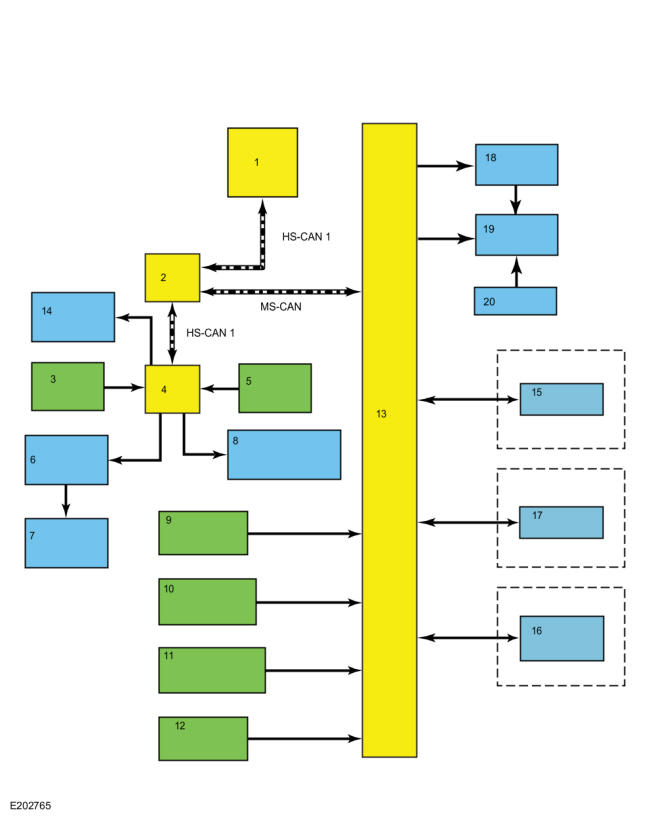

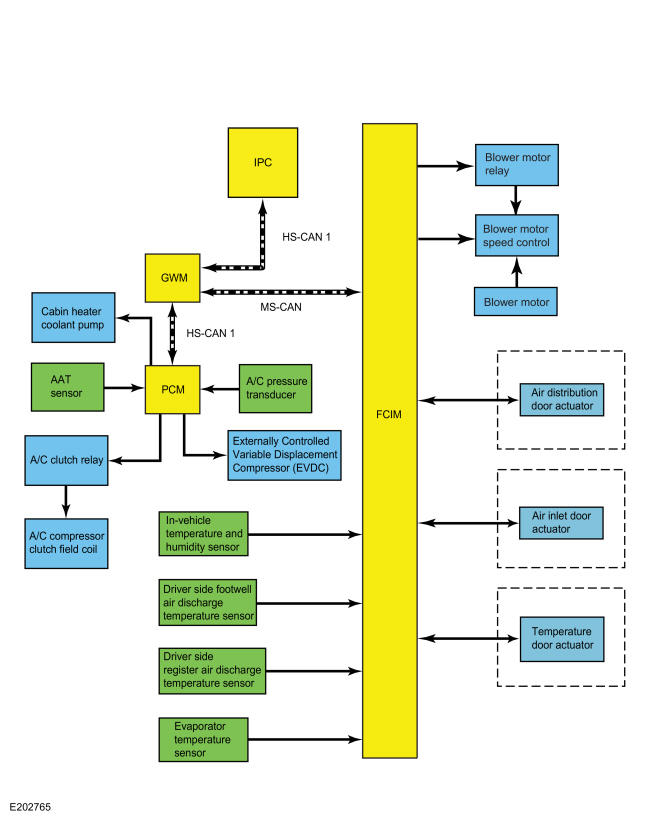

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | IPC |
| 2 | GWM |
| 3 | Ambient Air Temperature (AAT) sensor |
| 4 | PCM |
| 5 | A/C pressure transducer |
| 6 | A/C clutch relay |
| 7 | A/C compressor clutch field coil |
| 8 | Externally Controlled Variable Displacement Compressor (EVDC) |
| 9 | In-vehicle temperature and humidity sensor |
| 10 | Driver side footwell air discharge temperature sensor |
| 11 | Driver side register air discharge temperature sensor |
| 12 | Evaporator temperature sensor |
| 13 | FCIM |
| 14 | Cabin heater coolant pump |
| 15 | Air distribution door actuator |
| 16 | Temperature door actuator |
| 17 | Air inlet door actuator |
| 18 | Blower motor relay |
| 19 | Blower motor speed control |
| 20 | Blower motor |
