Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | In-Vehicle Temperature & Humidity Sensor |
| 2 | Auto Lamp & Sunload Sensor |
| 3 | FCIM & HVAC Control Module |

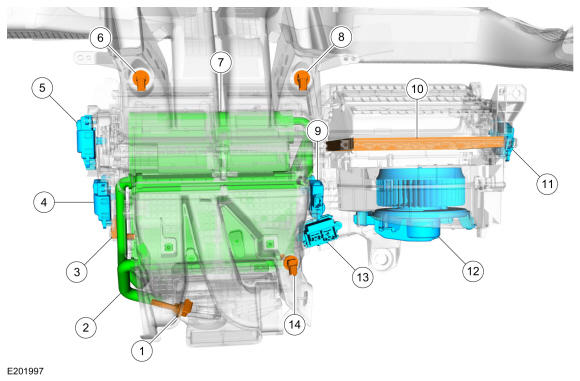

| Item | Description |
|---|---|
| 1 | Driver Side Footwell Air Discharge Temperature Sensor |
| 2 | Heater Core |
| 3 | Evaporator Temperature Sensor |
| 4 | Driver Side Temperature Door Actuator |
| 5 | Air Distribution Door Actuator |
| 6 | Driver Side Register Air Discharge Temperature Sensor |
| 7 | Evaporator |
| 8 | Passenger Side Register Air Discharge Temperature Sensor |
| 9 | Passenger Side Temperature Door Actuator |
| 10 | Cabin Air Filter |
| 11 | Air Inlet Door Actuator |
| 12 | Blower Motor |
| 13 | Blower Motor Speed Control |
| 14 | Passenger Side Footwell Air Discharge Temperature Sensor |
| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | Evaporator Inlet and Outlet Manifold |
| 3 | Thermostatic Expansion Valve |
| 4 | Heater Core and Evaporator Core Housing |
| 5 | A/C Compressor Outlet Line |
| 6 | A/C Compressor Inlet Line |
| 7 | Condenser |
| 8 | Receiver Drier Element |
| 9 | Ambient Air Temperature Sensor |
| 10 | A/C Pressure Transducer |
| 11 | Condenser Outlet Line |
Vehicles equipped with Auto Start Stop
| Item | Description |
|---|---|
| 1 | Cabin Heater Coolant Pump |
| 2 | Cabin Heater Coolant Pump Outlet Hose |
| 3 | Cabin Heater Coolant Pump Inlet Hose |
