Fuel Level Sender: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Diagnostic Methods .
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
-

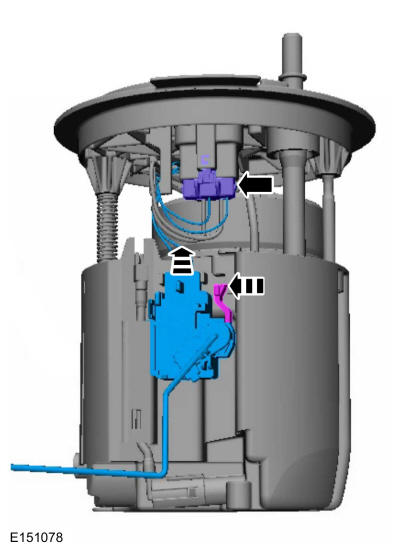

- Disconnect the electrical connector.
- Release the locking tab and remove the Fuel Level Sender.
