Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure to install a new Fuel Pump and Sender Unit O-ring seal.

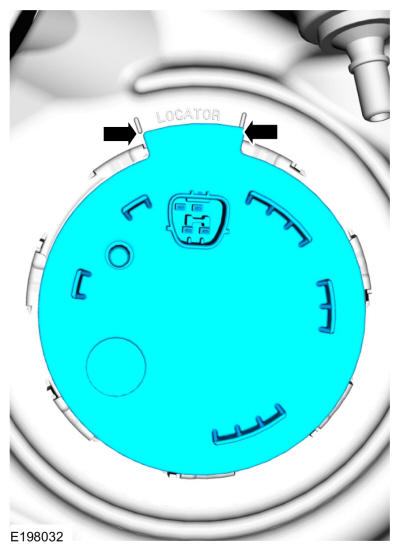

NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.

To install, reverse the removal procedure.

Courtesy of FORD MOTOR COMPANY
