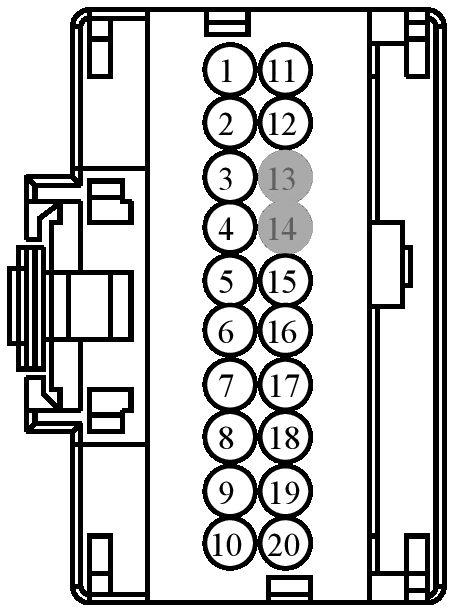

Connector End View (C501B) - DRIVER DOOR MODULE (DDM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C501B | DRIVER DOOR MODULE (DDM) | 14631 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-SAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPS15 (VT-WH) | 26 | SWITCH - MEMORY DRIVER P1 | DU5T-14474-SAB | ||||
| 2 | CPS17 (BU-OG) | 26 | SWITCH - MEMORY DRIVER P3 | DU5T-14474-SAB | ||||
| 3 | CPS16 (YE) | 26 | SWITCH - MEMORY DRIVER P2 | DU5T-14474-SAB | ||||
| 4 | CPL28 (VT-BN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # RESET | 8U5T-14474-BB | ||||
| 5 | LPM30 (GY) | 26 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | DU5T-14474-SAB | ||||
| 6 | VPM35 (YE-BU) | 26 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | DU5T-14474-SAA | ||||
| 7 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | 8U5T-14474-BA | ||||
| 8 | CPM27 (GY-BU) | 22 | CTRL MOD. - LEFT MIRROR LEFT | 8U5T-14474-BB | ||||
| 9 | CPM39 (GN-VT) | 20 | CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) | 8U5T-14474-BA | ||||
| 10 | CLN31 (VT) | 26 | CTRL MOD. - PUDDLE LAMP LEFT | DU5T-14474-SAB | ||||
| 11 | CPL29 (YE-GY) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # SET | 8U5T-14474-BA | ||||
| 12 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | 8U5T-14474-BB | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | RRB06 (GY) | 26 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - | DU5T-14474-SAA | ||||
| 16 | VPM36 (BN-YE) | 26 | SENSOR - LEFT MIRROR POSITION # VERTICAL | DU5T-14474-SAB | ||||
| 17 | RPM05 (VT-GN) | 22 | CTRL MOD. - LEFT MIRROR RETURN | 8U5T-14474-BB | ||||
| 18 | CPM04 (VT-BN) | 20 | CTRL MOD. - LEFT MIRROR FOLD IN | 8U5T-14474-BA | ||||
| 19 | CRB06 (GN-WH) | 26 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + | DU5T-14474-SAA | ||||
| 20 | CRD13 (GN-VT) | 20 | CTRL MOD. - HEATER MIRROR LEFT | 8U5T-14474-BA | ||||

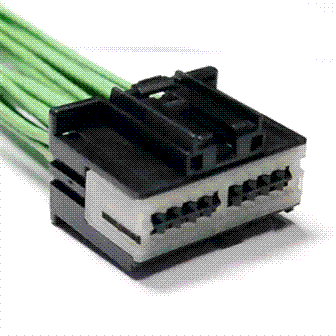

Available Pigtail Kits
Pigtail Kit Part Number WPT-1542
Service Part Number:
JU2Z-14S411-YA
Gauge:
20
Pin material:
Silver
Cavities:
20
Vehicle Uses:
- Control Head - Manual Climate
- Module - Driver Door
- Module - Electronic Automatic Temperature Control (EATC)
- Module - Front Interface
- Module - Passenger Door
