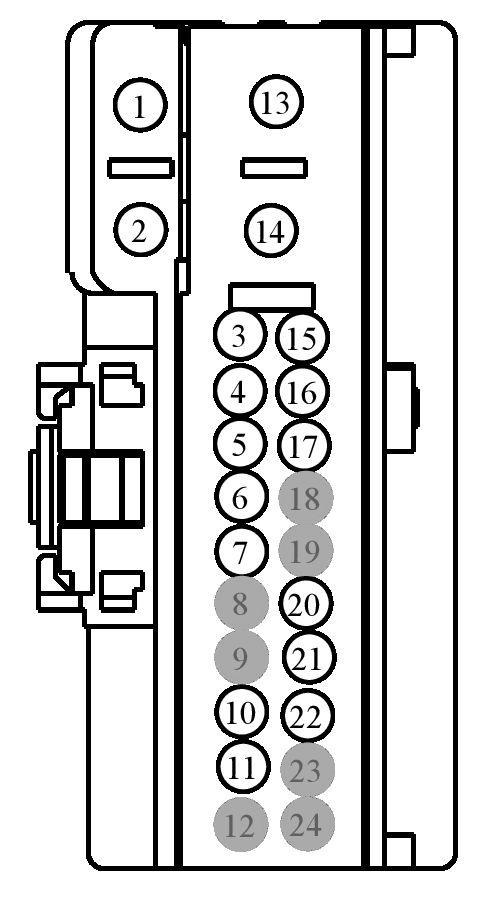

Connector End View (C501A) - DRIVER DOOR MODULE (DDM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C501A |
DRIVER DOOR MODULE (DDM) |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14474-SAB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP25 (RD) |
12 |
FUSE - 25 OR CIRCUIT BREAKER |
F8VB-14474-AA |
| 2 |
GD382 (BK-GY) |
12 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
F8VB-14474-AA |
| 3 |
CPL87 (BN) |
22 |
CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER |
8U5T-14474-BB |
| 4 |
CLS22 (GN) |
26 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
DU5T-14474-SAB |
| 5 |
VDN09 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA4] |
8U5T-14474-BA |
| 6 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
8U5T-14474-BB |
| 7 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
8U5T-14474-BA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CPL43 (VT) |
26 |
SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK |
DU5T-14474-SAB |
| 11 |
VPW39 (BU-WH) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD) |
8U5T-14474-BB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CPW35 (GN) |
12 |
CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE) |
F8VB-14474-AA |
| 14 |
CPW34 (BU) |
12 |
CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE) |
F8VB-14474-AA |
| 15 |
CPL77 (BU) |
26 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION |
DU5T-14474-SAB |
| 16 |
LPW36 (WH-BN) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
8U5T-14474-BA |
| 17 |
RPW03 (BU-GN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
8U5T-14474-BA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CPL42 (GY) |
26 |
SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK |
DU5T-14474-SAB |
| 21 |
VPW38 (YE-BU) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) |
8U5T-14474-BB |
| 22 |
RPW37 (VT-GN) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
8U5T-14474-BA |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
