Connector End View (C494) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C494 | INLINE | BK | 2C05414A005 | See Below | ||||

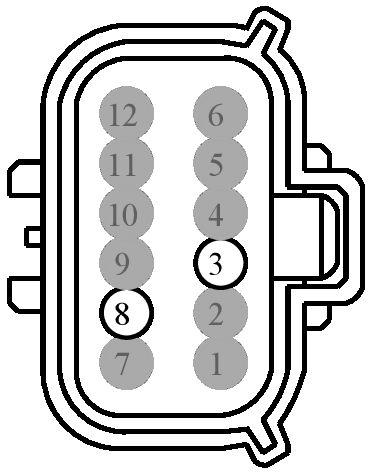

MALE
Harness
2C054

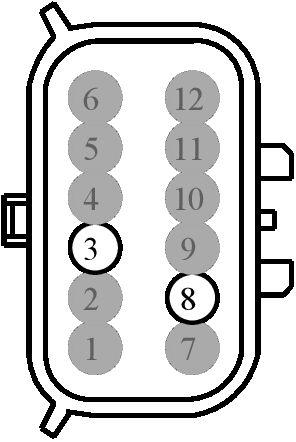

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | RCF21 (WH-VT) | 20 | ||
| 4 | * | * | ||
| 5 | * | * | ||
| 6 | * | * | ||
| 7 | * | * | ||
| 8 | CCF21 (VT-WH) | 20 | ||
| 9 | * | * | ||
| 10 | * | * | ||
| 11 | * | * |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
