Connector End View (C474) - LUGGAGE COMPARTMENT POWER OUTLET SOCKET

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C474	LUGGAGE COMPARTMENT POWER OUTLET SOCKET	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F8VB-14474-BA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB17 (RD)	16	FUSE - 17 OR CIRCUIT BREAKER	F8VB-14474-BA
2	*	*	Not Used	N/A
3	GD347 (BK-VT)	16	GROUND - PILLAR C OR QUARTER PANEL LEFT	F8VB-14474-BA

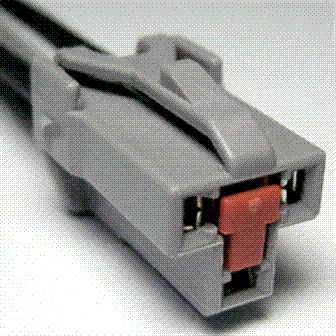

Available Pigtail Kits

Pigtail Kit Part Number WPT-1160

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SJB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Cigar Lighter
Lamp - Ash Tray
Power Point
