Connector End View (C465) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C465 | INLINE | BK | 14A00513A576 | See Below | ||||

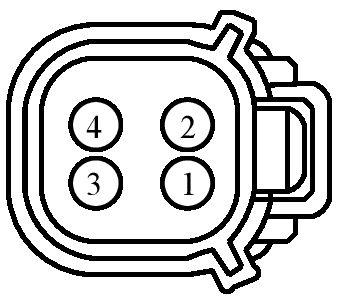

MALE
Harness
14A005

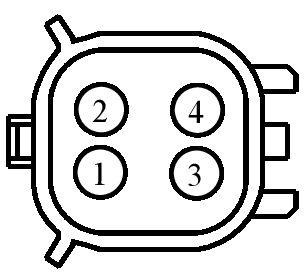

FEMALE
Harness
13A576
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CAT29 (GN) | 18 | 14A005 | |
| 1 | CAT29 (GN) | 4 | 13A576 | |
| 2 | RAT08 (WH) | 14 | 13A576 | |
| 2 | RAT08 (WH) | 16 | 14A005 | |
| 3 | CAT11 (BN) | 16 | 14A005 | |
| 3 | CAT11 (BN) | 4 | 13A576 | |
| 4 | CAT28 (YE) | 18 | 14A005 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1288
Service Part Number:
CU2Z-14S411-ZA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570
Service Part Number:
CU2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - RH - Front
- Connector - Inline
- Lamp - Fog/Driving
- Lamp - Liftgate Applique
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1498
Service Part Number:
BU2Z-14S411-TB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Lamp - Reverse
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Speaker - Subwoofer
- Switch - Heated Seat - LH - Rear
- Switch - Heated Seat - RH - Rear
- Valve - Active Exhaust Solenoid
Pigtail Kit Part Number WPT-1171
Service Part Number:
BU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
