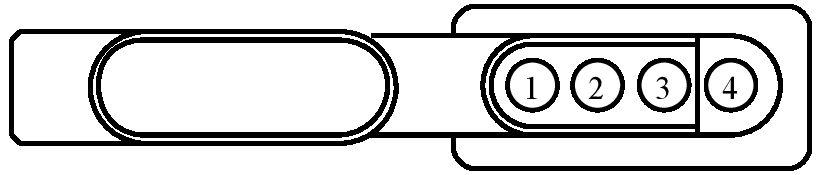

Connector End View (C439) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C439 |
TRAILER TOW CONNECTOR |
13A576 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| E8EB-14461-GA |
Not Available |
| E8EB-14488-ALA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CAT29 (GN) |
4 |
CTRL MOD. - TRAILER TOW # STOP/TURN LAMP RIGHT (COLOR TO SAE 1239) |
E8EB-14488-ALA |
| 2 |
CAT28 (YE) |
4 |
CTRL MOD. - TRAILER TOW # STOP/TURN LAMP LEFT (COLOR TO SAE 1239) |
E8EB-14488-ALA |
| 3 |
CAT11 (BN) |
4 |
CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) |
E8EB-14488-ALA |
| 4 |
RAT08 (WH) |
14 |
CTRL MOD. - TRAILER TOW # RETURN (USA ONLY- COLOR TO SAE 1239 EXCEPTION TO PSF) |
E8EB-14461-GA |
