Connector End View (C438) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C438 | INLINE | BK | 15K86814A005 | See Below | ||||

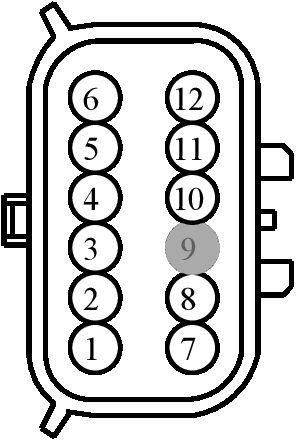

MALE
Harness
15K868

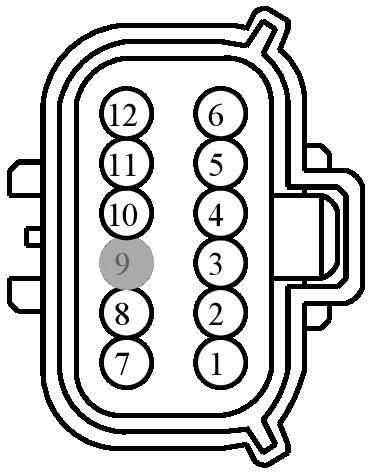

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | RMP07 (GN-WH) | 22 | ||
| 2 | VMP16 (YE-GY) | 22 | ||
| 3 | LMP07 (BU-WH) | 22 | ||
| 4 | VMP29 (GN-OG) | 22 | ||
| 5 | SBP10 (YE-RD) | 20 | 15K868 | |
| 5 | SBP10 (YE-RD) | 22 | 14A005 | |
| 6 | VMP14 (WH-OG) | 22 | ||
| 7 | GD347 (BK-VT) | 20 | ||
| 8 | CPK52 (VT-WH) | 20 | 15K868 | |
| 8 | CPK52 (VT-WH) | 22 | 14A005 | |
| 9 | * | * | ||
| 10 | VMP30 (BN) | 22 | ||
| 11 | VMP17 (YE-OG) | 22 |

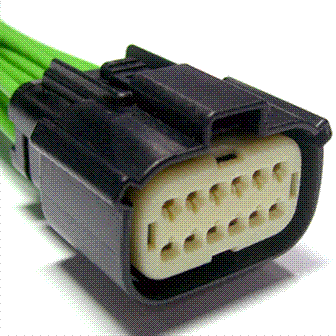

Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
