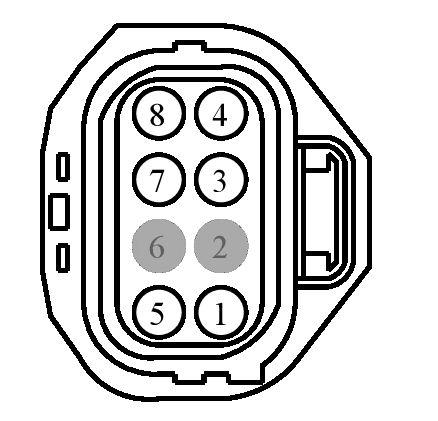

Connector End View (C433) - FUEL PUMP CONTROL MODULE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C433 | FUEL PUMP CONTROL MODULE | LT GY | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE608 (VT-GN) | 10 | RELAY - FUEL PUMP | F8ZB-14474-AA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | 97BG-14474-BDA | ||||
| 4 | GD304 (BK-YE) | 10 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 4TH POINT | F8ZB-14474-AA | ||||
| 5 | CE515 (YE-GY) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) + | 97BG-14474-BFA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | 97BG-14474-BDA | ||||
| 8 | RE515 (WH-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - | 97BG-14474-BFA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1332
Service Part Number:
DU2Z-14S411-CA
Gauge:
14
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Module - Fuel Pump Driver
