Connector End View (C432) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C432 | INLINE | DK GY | 2B25414A005 | See Below | ||||

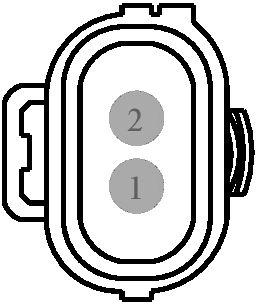

MALE
Harness
2B254
FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CCB16 (WH-VT) | 12 | 2B254 | |
| 1 | CCB18 (YE-GY) | 12 | ||
| 2 | CCB17 (BU-GN) | 12 | 2B254 |

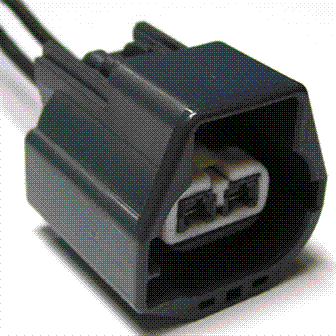

Available Pigtail Kits
Pigtail Kit Part Number WPT-1336
Service Part Number:
DU2Z-14S411-KA
Gauge:
16
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Motor - Fuel Filler Door
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Rear
Pigtail Kit Part Number WPT-1496
Service Part Number:
DU2Z-14S411-KB
Gauge:
14
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Glow Plug
- Motor - Fuel Filler Door
- Motor - Power Slider
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
