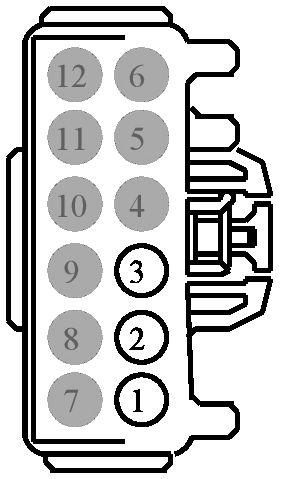

Connector End View (C425C) - TRAILER MODULE (TRM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C425C	TRAILER MODULE (TRM)	LT GY	13A576	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CAT28 (YE)	18	CTRL MOD. - TRAILER TOW # STOP/TURN LAMP LEFT (COLOR TO SAE 1239)	97BG-14474-BBA
2	CAT29 (GN)	18	CTRL MOD. - TRAILER TOW # STOP/TURN LAMP RIGHT (COLOR TO SAE 1239)	97BG-14474-BBA
3	CAT11 (BN)	16	CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239)	97BG-14474-BBA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Liftgate
Switch - Headlamp
Switch - Seat (driver)
Switch - Seat (passenger)
