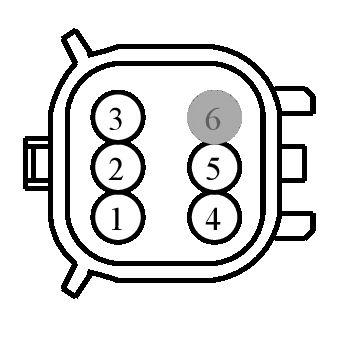

Connector End View (C412) - REAR LAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C412 | REAR LAMP ASSEMBLY LH | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS51 (WH-GN) | 22 | CTRL MOD. - STOP/TURN LEFT OUTBOARD | BU5T-14421-HA | ||||
| 2 | CLS23 (GY-OG) | 22 | CTRL MOD. - TURN LAMP LEFT REAR | BU5T-14421-HA | ||||
| 3 | CLS08 (VT-GN) | 22 | CTRL MOD. - PARK REAR LEFT | BU5T-14421-HA | ||||
| 4 | CLS55 (GN-BU) | 22 | LAMP - TURN REAR LEFT # SIGNAL OUT | BU5T-14421-HA | ||||
| 5 | GD347 (BK-VT) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT | BU5T-14421-HA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
