Connector End View (C411) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C411 | INLINE | 14A00514B562 | See Below | |||||

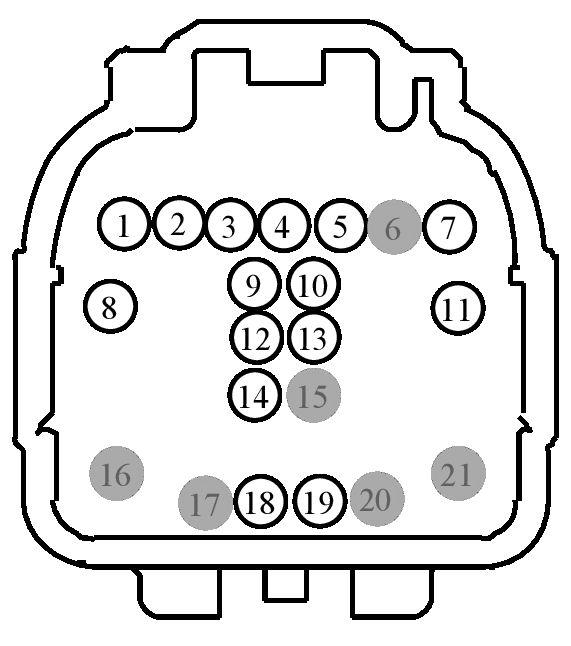

MALE
Harness
14A005

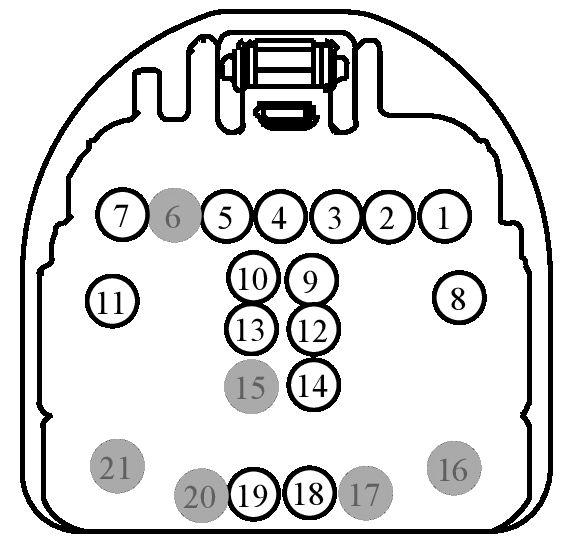

FEMALE
Harness
14B562
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CBB23 (BN-YE) | 20 | ||
| 2 | VDN04 (VT-WH) | 20 | 14B562 | |
| 2 | VDN04 (VT-WH) | 22 | 14A005 | |
| 2 | VMP24 (WH) | 22 | 14A005 | |
| 3 | VPK06 (GY-VT) | 20 | 14B562 | |
| 3 | VPK06 (GY-VT) | 22 | 14A005 | |
| 4 | RPK06 (BU-WH) | 20 | 14B562 | |
| 4 | RPK06 (BU-WH) | 22 | 14A005 | |
| 5 | CRW02 (GY-BU) | 20 | 14B562 | |
| 5 | CRW02 (GY-BU) | 22 | 14A005 | |
| 6 | * | * | ||
| 7 | GD347 (BK-VT) | 20 | ||
| 8 | CRW13 (GN) | 16 | ||
| 9 | CLS10 (GN-BN) | 20 | 14B562 | |
| 9 | CLS28 (BU-WH) | 20 | 14B562 | |
| 9 | CLS28 (BU-WH) | 22 | 14A005 | |
| 10 | CPL10 (GN-WH) | 20 | ||
| 11 | GD312 (BK) | 16 | ||
| 12 | DMP22 (*) | 20 | ||
| 13 | VMP22 (BU-BN) | 20 | ||
| 14 | VMP23 (BN-GN) | 20 | ||
| 15 | * | * | ||
| 16 | * | * | ||
| 17 | * | * | ||
| 18 | CPL44 (YE-OG) | 20 | 14B562 | |
| 18 | CPL44 (YE-OG) | 22 | 14A005 | |
| 19 | CLS05 (BU-GY) | 20 | 14B562 | |
| 19 | CLS05 (BU-GY) | 22 | 14A005 | |
| 20 | * | * |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
