Connector End View (C410) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C410 | INLINE | 14A00514A583 | See Below | |||||

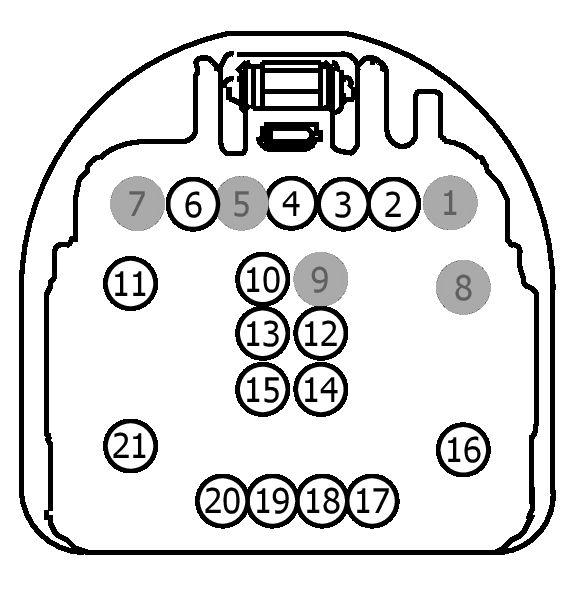

MALE
Harness
14A005

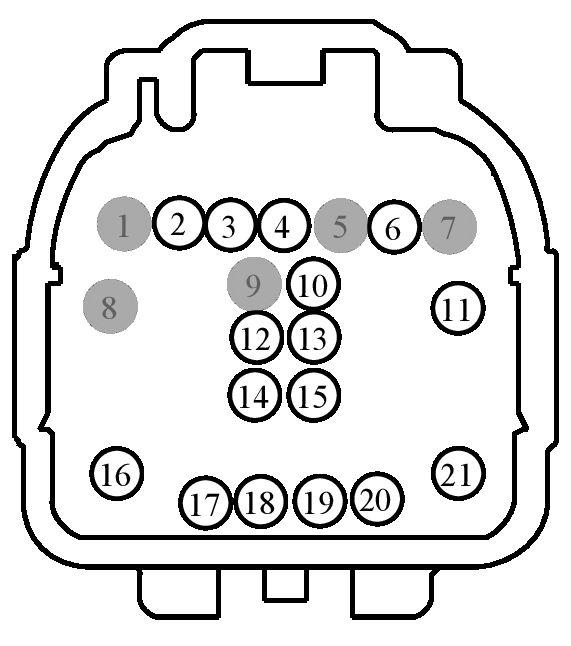

FEMALE
Harness
14A583
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | RPR52 (VT-GY) | 20 | 14A583 | |
| 2 | RPR52 (VT-GY) | 22 | 14A005 | |
| 3 | CPL45 (BN) | 20 | 14A583 | |
| 3 | CPL45 (BN) | 22 | 14A005 | |
| 4 | CPR51 (YE-OG) | 20 | 14A583 | |
| 4 | CPR51 (YE-OG) | 22 | 14A005 | |
| 5 | * | * | ||
| 6 | CPR52 (YE-VT) | 20 | 14A583 | |
| 6 | CPR52 (YE-VT) | 22 | 14A005 | |
| 7 | * | * | ||
| 8 | * | * | ||
| 9 | * | * | ||
| 10 | CPR60 (WH-VT) | 20 | ||
| 11 | GD312 (BK) | 20 | ||
| 12 | CPR61 (BN) | 20 | ||
| 13 | RPR61 (YE-VT) | 20 | ||
| 14 | CPR64 (VT-OG) | 20 | 14A583 | |
| 14 | CPR64 (VT-OG) | 22 | 14A005 | |
| 15 | CPR65 (BU-GN) | 20 | 14A583 | |
| 15 | CPR65 (BU-GN) | 22 | 14A005 | |
| 16 | CRD06 (BN-YE) | 10 | ||
| 17 | CLS17 (YE-GY) | 20 | 14A583 | |
| 17 | CLS17 (YE-GY) | 22 | 14A005 | |
| 18 | CPR67 (VT) | 20 | 14A583 | |
| 18 | CPR67 (VT) | 22 | 14A005 | |
| 19 | CPR66 (GY-YE) | 20 | 14A583 | |
| 19 | CPR66 (GY-YE) | 22 | 14A005 | |
| 20 | CPR89 (BN-BU) | 20 | 14A583 | |
| 20 | CPR89 (BN-BU) | 22 | 14A005 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1463
Service Part Number:
GU2Z-14S411-GA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1482
Service Part Number:
GU2Z-14S411-GB
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
